Description

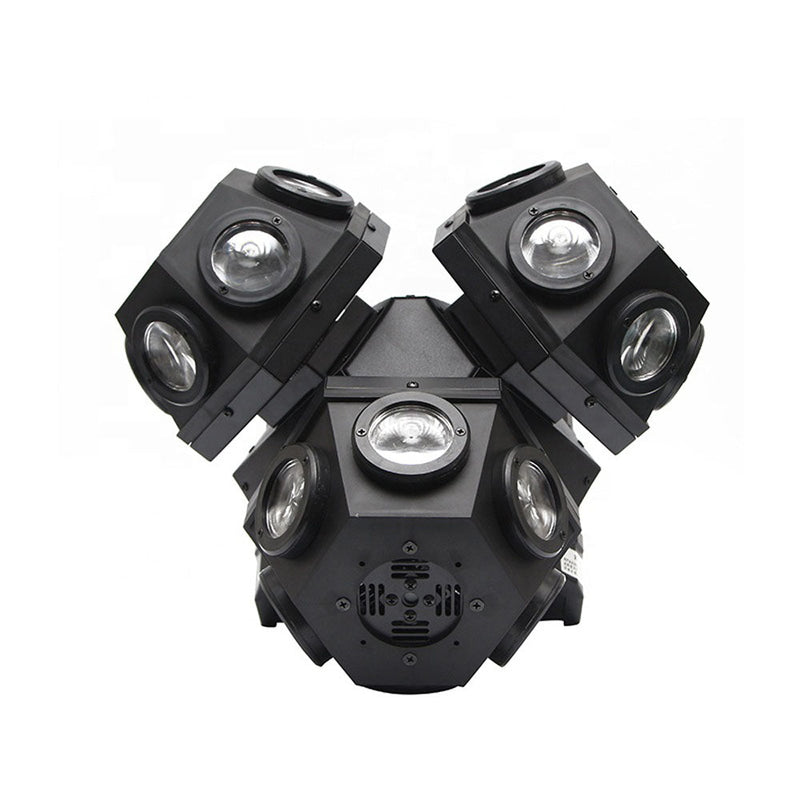

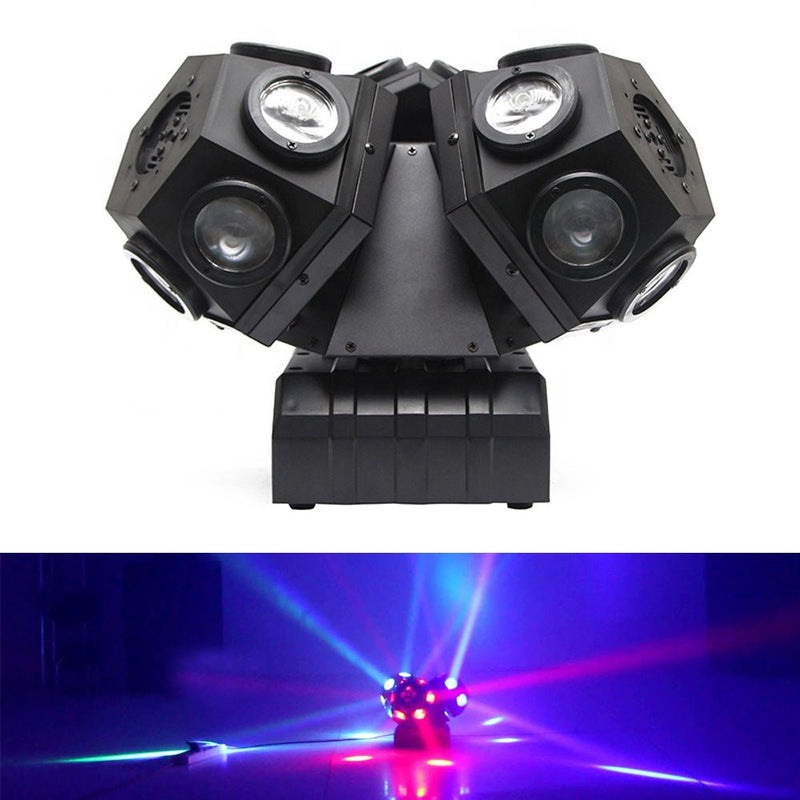

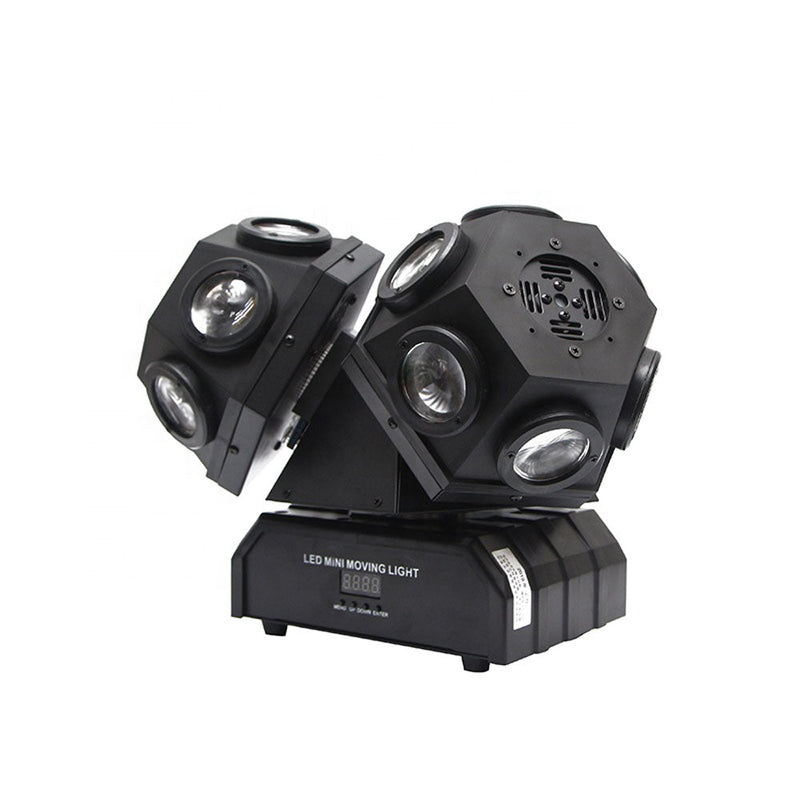

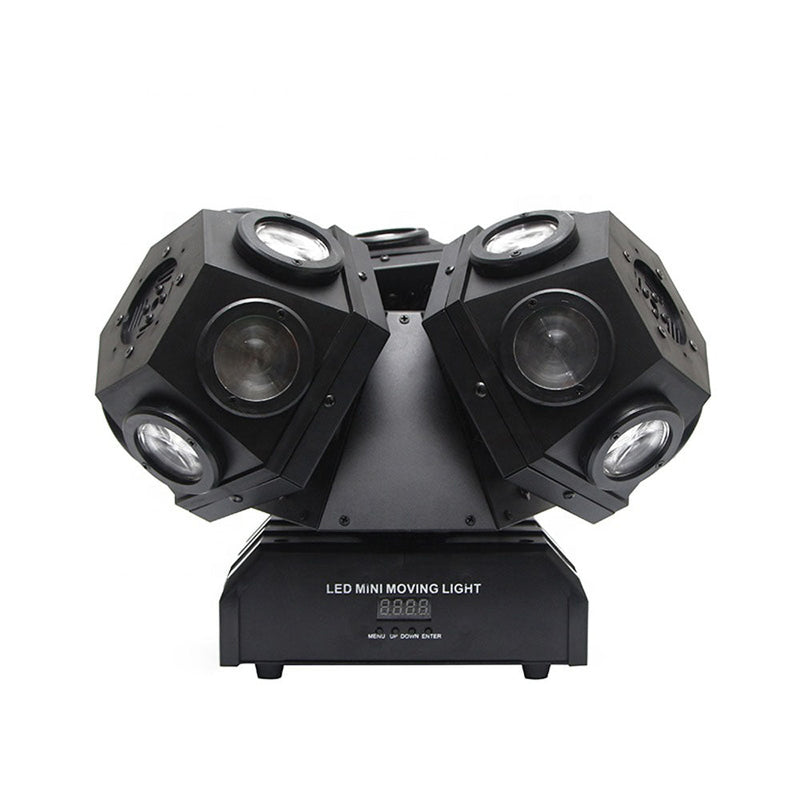

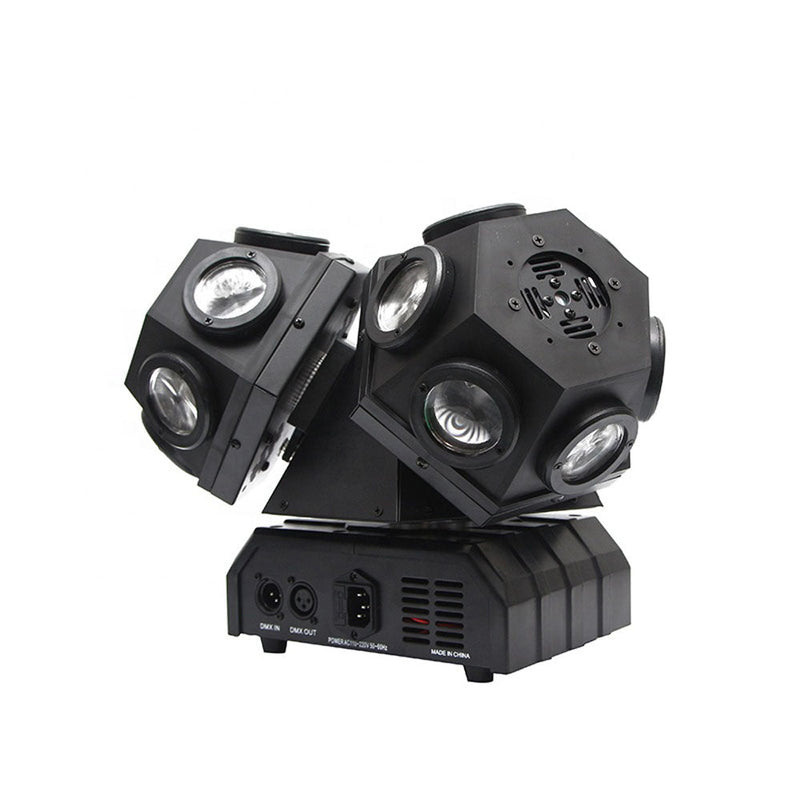

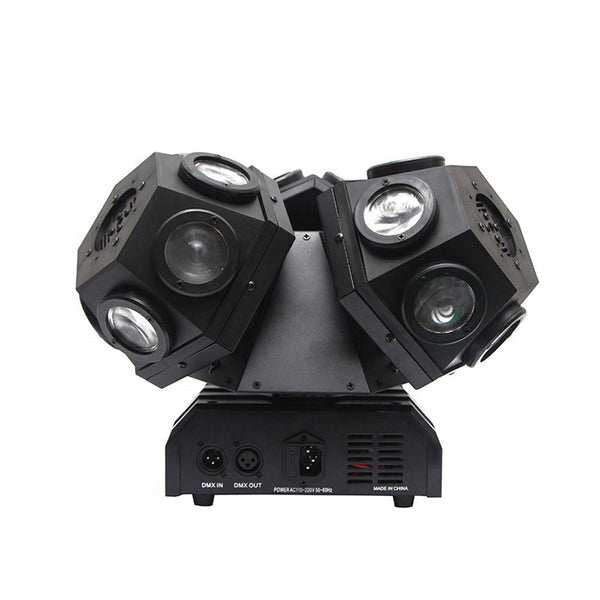

CRONY 18PCS*10W LED Moving 3 Head Light With Laser DJ laser stage lighting beam dmx led dj light bar ktv effect lights
Voltage: AC110/220V 50-60HZ
Power: 180W
Source: 10W*18PCS
Laser: Red:100MW Green:50MW Blue:50MW
Control mode: Auto,Sound,DMX512
Net weight: 6KG
Size: 39*39*40cm
Application
It is suitable for KTV, night club,party etc.
3 heads 1 8 full-color moving head lights
Menu function :
ADDR A001---A512 address code
CHND 1 2 CH, 1 5 CH channel selection
SLND MAST, SLAV
SHND SOUD, AUTO ( speed SP0 - SP9) sound control, self-propelled selection
SENS sound control sensitivity (0 is off, 100 is the most sensitive )
BLND YES, NO standby mode
LED ON, OFF backlight switch
DISP YES, NO reverse display
PAN YES, NO horizontal motor reverse
TILT YES, NO vertical motor reverse
MANU PAN,TILT RED,GREEN,BLUE,WHITE,
DIMMER, STROBE , manual test
TEST automatic test
VER V104 software version number
RSET YES, NO to restore factory settings
DMX channel function
1 2 CH:
- Horizontal motor: 0---127 , 0-----360 ° travel positioning,
128---191 clockwise infinite rotation from fast to slow
192---255 endless rotation counterclockwise from slow to fast
- Vertical motor 1 : 0---127 , 0---360 ° stroke positioning,
128---191 clockwise infinite rotation from fast to slow
192---255 endless rotation counterclockwise from slow to fast
- Vertical motor 2 : 0---127 , 0---360 ° stroke positioning,
128---191 clockwise infinite rotation from fast to slow
192---255 endless rotation counterclockwise from slow to fast
4 . Vertical motor . 3 : 0 --- 127 , 0 ----- 360 [deg.] Stroke positioning,
128---191 clockwise infinite rotation from fast to slow
192---255 endless rotation counterclockwise from slow to fast
5 . Horizontal / vertical motor speed : 0 --- 255 coming from the slow
6 . Total Dimming: 0 - 255 0 100% -----
7 . Strobe: 0 ---. 9 opening, 10 --- 249 to fast from slow strobe 250 255 --- the opening
8 . Red dimming: 0 --- 255 0 100% -----
9 . Green dimming: 0 --- 255 0 100% -----
10 . Blue dimming: 0 --- 255 0 100% -----
. 1 . 1 . White dimming: 0 --- 255 0 100% -----
. 1 2 . Macro : 0 --- 249 No function 250 --- 255 overall reset (5 take effect seconds )
1 5 CH:
- Horizontal motor: 0---127 , 0-----360 ° travel positioning,
128---191 clockwise infinite rotation from fast to slow
192---255 endless rotation counterclockwise from slow to fast
- Vertical motor 1 : 0---127 , 0---360 ° stroke positioning,
128---191 clockwise infinite rotation from fast to slow
192---255 endless rotation counterclockwise from slow to fast
- Vertical motor 2 : 0---127 , 0---360 ° stroke positioning,
128---191 clockwise infinite rotation from fast to slow
192---255 endless rotation counterclockwise from slow to fast
4 . Vertical motor . 3 : 0 --- 127 , 0 ----- 360 [deg.] Stroke positioning,
128---191 clockwise infinite rotation from fast to slow
192---255 endless rotation counterclockwise from slow to fast
5 . Horizontal / vertical motor speed : 0 --- 255 coming from the slow
6 . Total Dimming: 0 - 255 0 100% -----
7 . Strobe: 0 ---. 9 opening, 10 --- 249 to fast from slow strobe 250 255 --- the opening
8 . Red dimming: 0 --- 255 0 100% -----
9 . Green dimming: 0 --- 255 0 100% -----
10 . Blue dimming: 0 --- 255 0 100% -----
11 . White dimming: 0 --- 255 0 100% -----
12 . Lamp bead Macro Function : 0 --- 15 no function 16 --- 255 megafunctions
13 . Motor Macro Function : 0 --- 15 no function 16 --- 255 megafunctions
. 1 . 4 . Macro Function speed : speed from slow to fast
. 1 5 . Macro : 0 --- 249 No function 250 --- 255 overall reset (5 take effect seconds )
Warranty: 0 Months
