Description

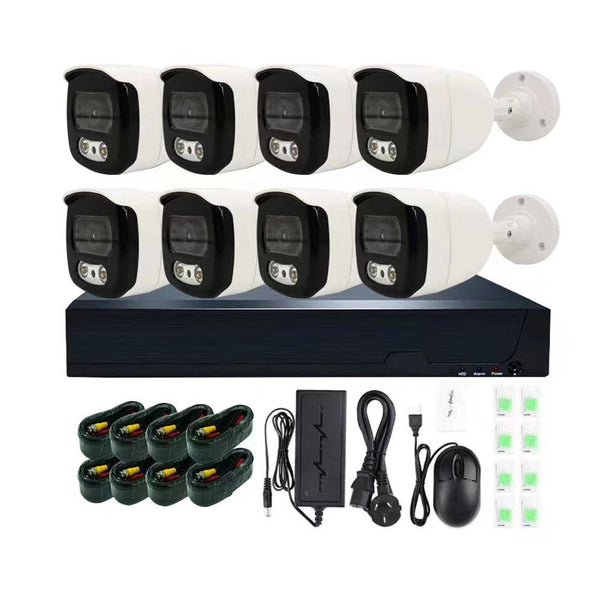

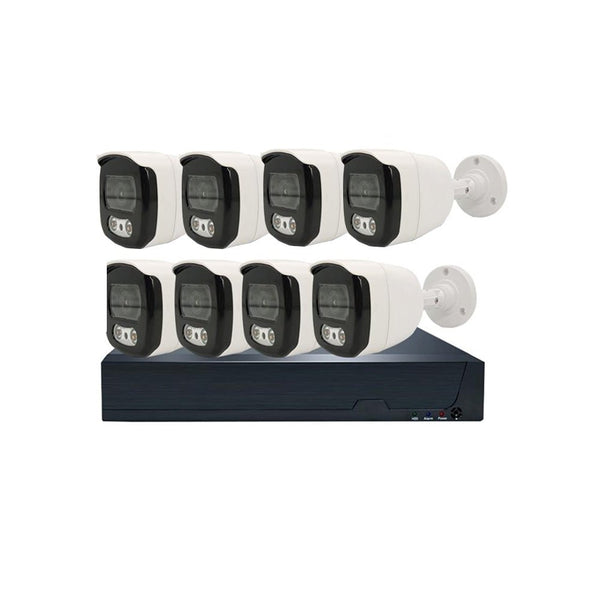

DVR KIT 8ch Full HD Outdoor Waterproof Camera DVR Kit Combo Cctv Camera Kit
Specifications
Camera
Sensor 1/2.7 inch Silicon S291 sensor
Lens 3.6mm@F1.2
Lens Detect(m) Observe(m) Recognize(m) Identify(m)
DORI Distance
3.6mm 84 33.6 16.8 8.4
Angle of View (H) 112.7° 86.5°
Angle of View (V) 60.1° 44.1°
Angle of View (D) 146.5° 106.4°
Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Shutter 1/50(1/60) seconds to 1/10,000 seconds
Ccolor：0. 01Lux@（F1.2，AGC ON），0Lux with IR，
Minimum Illumination
Black & White：0.001Lux@（F1.2，AGC ON），0Lux with IR
Lens Parameters C/CS interface, M12 lens optional
Day/Night Support Warm Light LED，Support PWM
S/N >58dB
Synchronous Mode inter-sync
Wavelength 850nm
IR On/Off Control Auto
Consumption <10W
Video Resolution PAL/NTSC : 1920*1080
Video recorder
Video Input 4
operating system Embedded Linux operating system
Preview ability:4*1080N@25fps（4 in 1）/ 4*720P@25fps（4 in 1）
Video
Coding ability:4*1080N@25fps（4 in 1）/ 4*720P@25fps（4 in 1）
Decoding ability:4*1080N@25fps（4 in 1）/ 4*720P@25fps（4 in 1）
Compression format H.265
Channel mode Support any channel mode combination (1080N analog + 1080P digital)
VGA output 1080P
BNC output Optional, not supported by default
HDMI output 1080P
Audio
Audio Input 1
Audio output 1
Coaxial audio 4
Storage
HDD number 1
Network
Network port 10 / 100 Mbps Ethernet (RJ-45)
Network protocol TCP/IP, DHCP, DDNS, NTP, SMTP
Support mobileAPPvideo preview (IOS,Android); Support VMS
Supports multiple web browsers
Video mode:Timing, manual, motion detection
Search mode:Point-in-time search, calendar search, event search, channel search
Playback 4-way non-real-time
Support USB mobile hard disk, U disk
Support USB DVD burner
H.26X、AVI
General
Power
12 V DC 5A
Power consumption: ＜ 20W
Packing box (L × W × H) 332×180×290mm
Net Weight 14.25kg
Material Plastic
Working Environment -20°C ~ +60°C, Humidity: ≤95% RH(non-condensing)
Strorage Environment -20°C ~ +60°C , Humidity: ≤95% RH(non-condensing)
Surge Protection 2KV
Ingress Protection IP66
