WARRANTY: One Year
Features:
360° Panoramic PTZ Camera: 360 degree PTZ rotation, provides wider viewing angle with horizontal 340°(Pan) and vertical 70°(Tilt) for your home.
WiFi HD 1080P: You can view the real-time images and remote video with 1080P resolution via IOS/Android smartphones (APP), Macs and PCs.
One-touch Calling: Support multiple users viewing at the same time, take care of your baby and the elderly.
2-way Audio Intercom: Remotely listen and talk to your baby and family with clear sound quality.
10M/32.8ft IR Night Vision: Built-in IR LEDs, clearly identify human's faces in pitch darkness.
Wide Application: Widely used in home, school, supermarket, company and so on.
Motion detection alarm, video and account encryption transmission, provide more security with privacy to you.
The video only can be viewed when using APP online, prevent others from stealing your TF card (not included).
3D navigation monitor, turn to see everywhere you want.
Specifications:

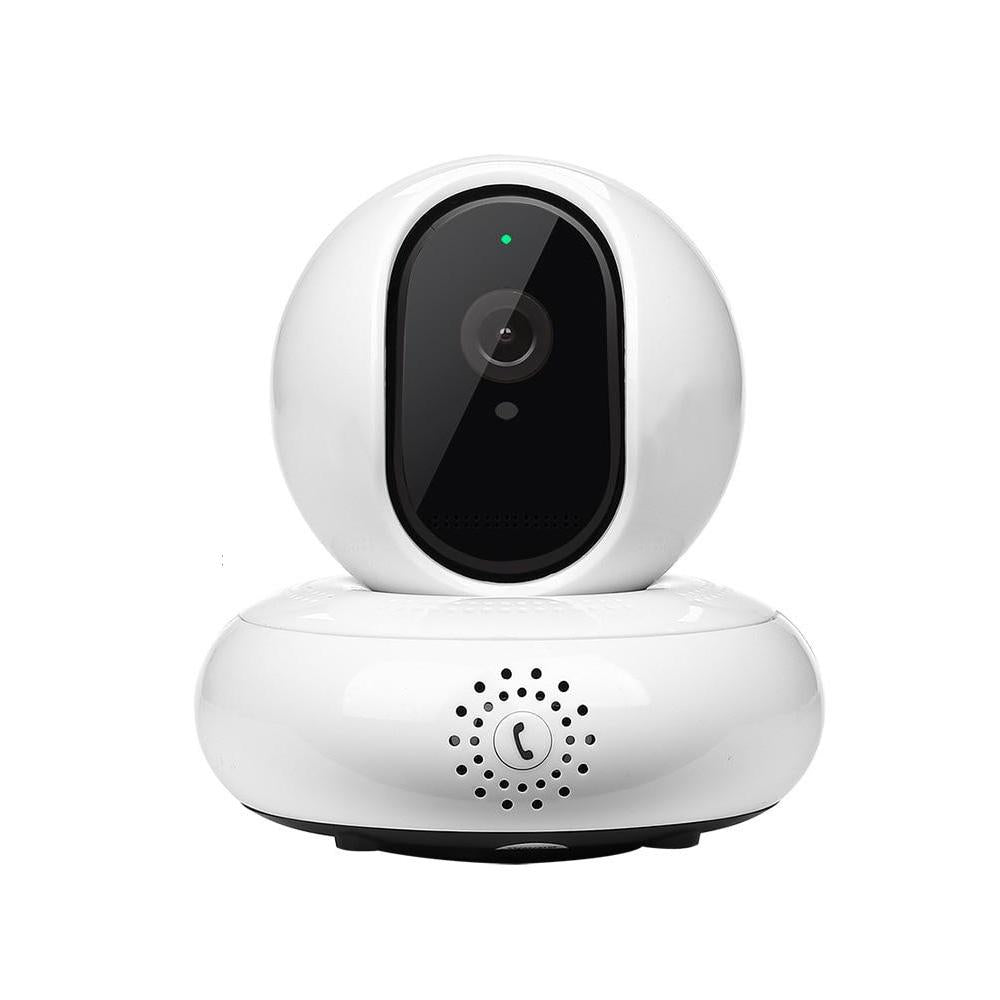

Model: EC67-R11
Resolution: 1080P
Processor: T20L+SC2235
Operating System: Embedded LINUX operating system
Image Sensor: 1/3 HD CMOS 2MP CMOS sensor
Video Format: FHD(1920*1080P),D1(768*576)
Video Compression: H.264
Video Frame Rate: Max. 15 frame
Video Playback Mode: Mobile client
Audio: Built-in 38DB microphone and 8Ω2W speaker
IR Night Vision: 10M/32.8ft (IR-cut automatic switching)
Reverse Call: Press the button, device will make voice broadcast and send call request to APP at the same time, click view to enter the real-time video
Minimum Illumination: 0.1Lux/F1.2
PTZ Control: Pan 340°; Tilt 70°
Local Storage: Max. 128GB TF card (not included)
Cloud Storage: Support
24 Hours Video Alarm: Support
Support Multiple Protocols: TCP/UDP,IP,DHCP,NTP
WiFi: IEEE 802.11 b/g/n
Image Rotation: Mirror / Upside Down
Video Control: Support
Motion Detection: Support
Firmware Ungrade: Remote upgrade can be through the network
Charging Port: USB
Supply Voltage: DC 5V 1.6A
Working Temperature: 0~55
Working Environment: Indoor
Dimensions: 90*90*95 mm / 3.5*3.5*3.7 inch
Package Included:
1x WiFi IP PTZ Camera
1x USB Cable
1x Power
1x Screws Package
1x User Manual
