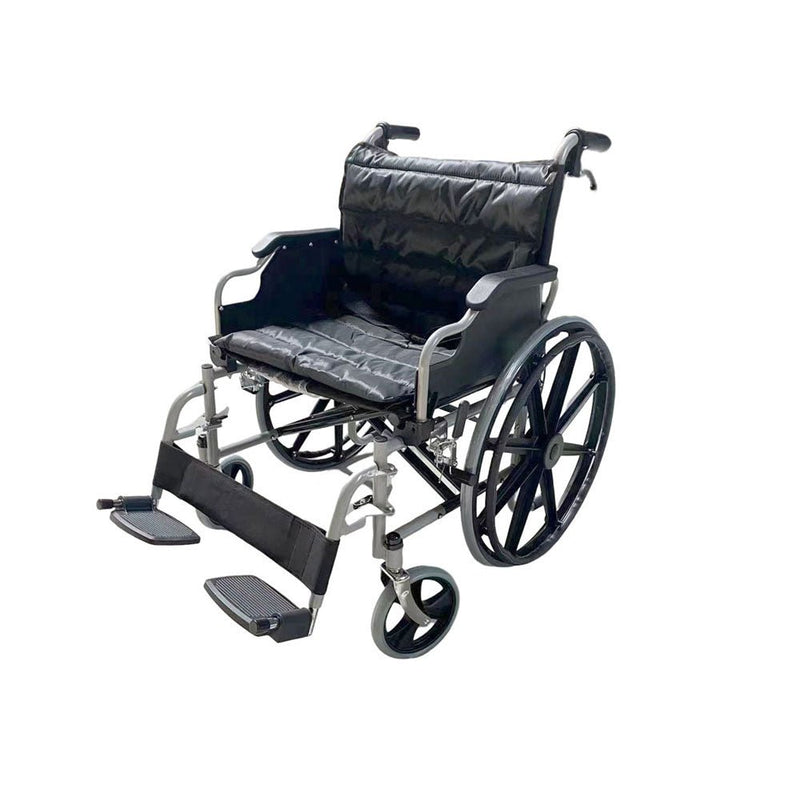

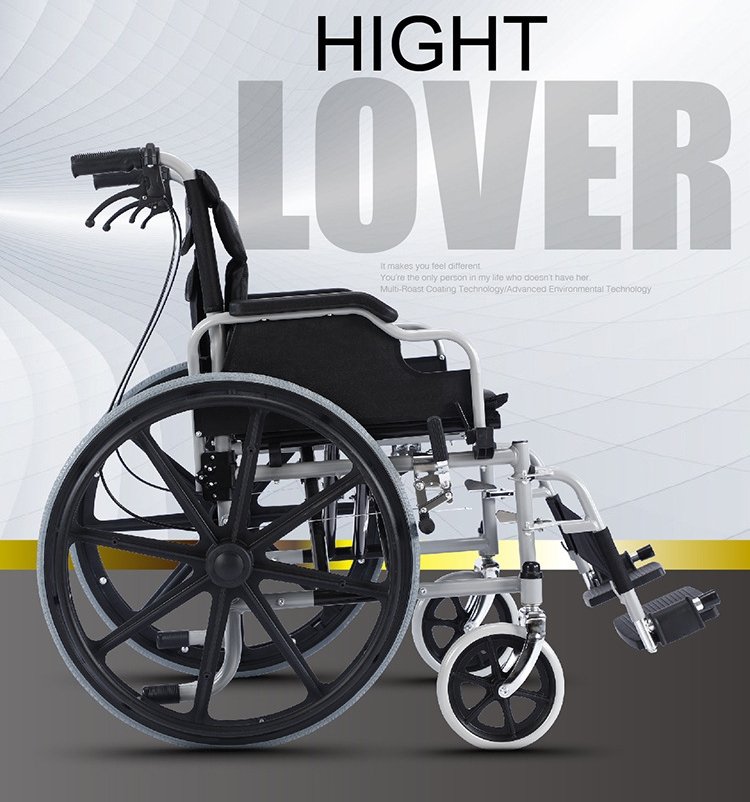

CRONY S01 Widened and load-bearing hand push folding wheelchair
Description of wheelchair function
material: air frame material with high strength titanium # 6061 aluminum alloy tube production, pipe specifications: Ø 25.4 * 2.5 mm
Special process description: Bicycle processing is adopted, and special T4/T6 aging and hardening treatment is adopted after welding. After processing, the hardness of the aluminum tube is ensured to be 14-15° with high strength, which can ensure the safety bearing capacity of 150kg and fatigue test of more than 200,000 times.
Surface treatment: baking paint, spraying green wear-resistant silver bright paint, using three layers of bicycle spraying paint processing, high strength, good wear resistance, salt spray test more than 120 hours without defects;

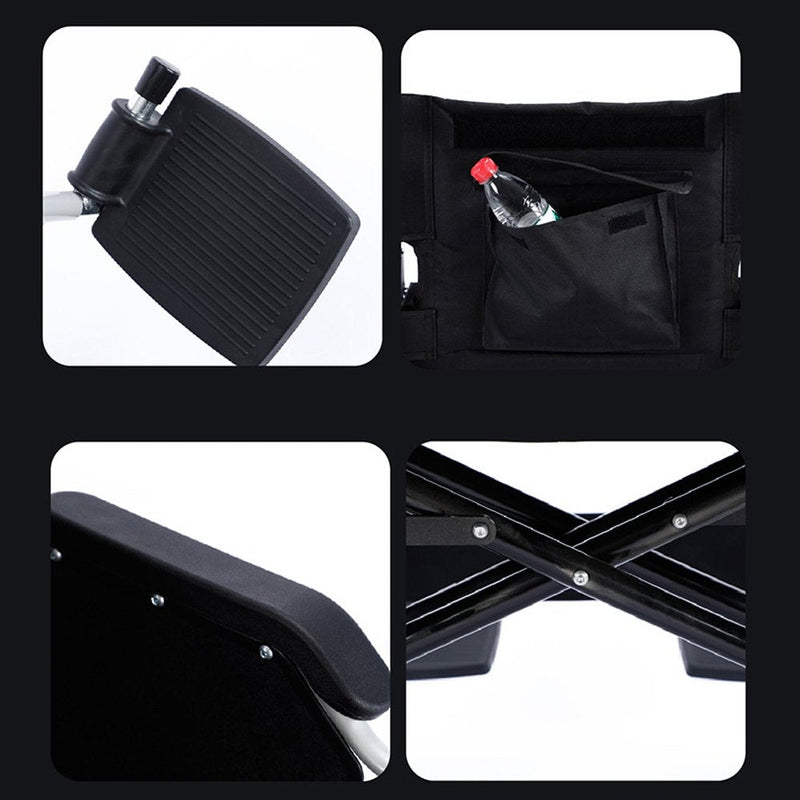

Handrail structure: the handrail structure can be rotated after turning. The handrail shell can be rotated after turning to the back of the back, which is flexible, smooth and convenient for use.The handrail pad is PU widened handrail pad, comfortable and beautiful.The handrail support seat is a special plastic handrail support seat with built-in iron plates, with good strength and smooth operation.
Foot assembly: movable, rotating removable foot structure, foot pedal can be adjusted up and down infinitely, can adjust any height according to user needs, installation, disassembly, rotation flexible, smooth without blocking feeling.

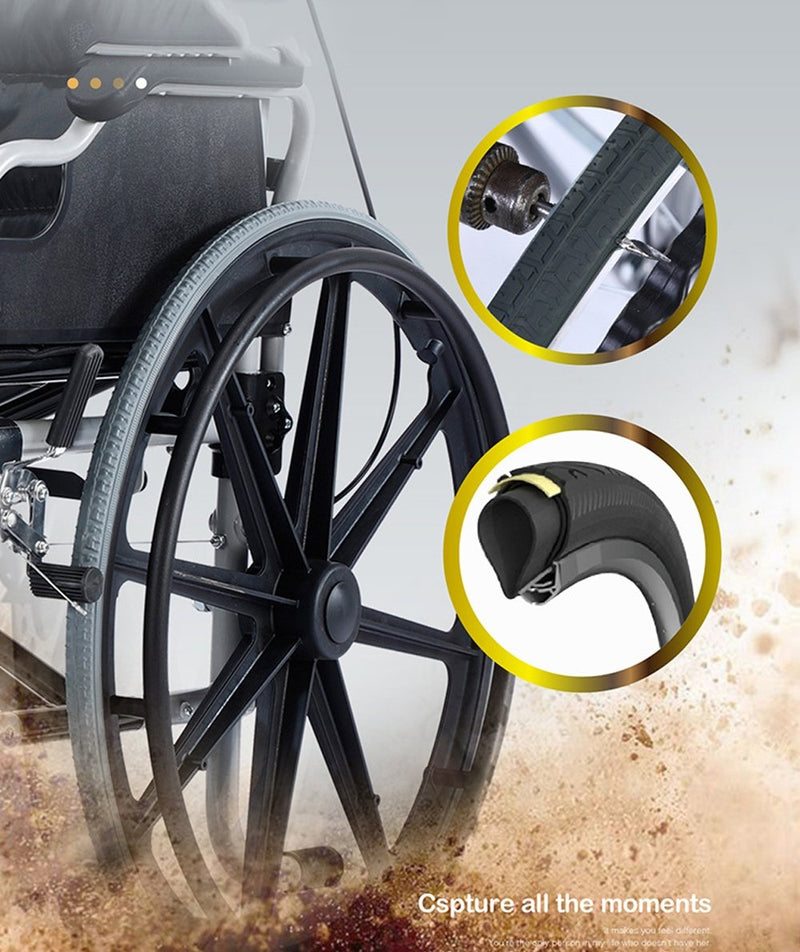

Big wheel assembly: 24-inch ABS high-strength plastic big wheel, with 24-inch smooth (or pattern) rubber solid tire, big wheel is well installed and adjusted, transverse runout and radial runout are less than 3mm;
Big wheel assembly: 24-inch ABS high-strength plastic big wheel, with 24-inch smooth (or pattern) rubber solid tire, big wheel is well installed and adjusted, transverse runout and radial runout are less than 3mm;

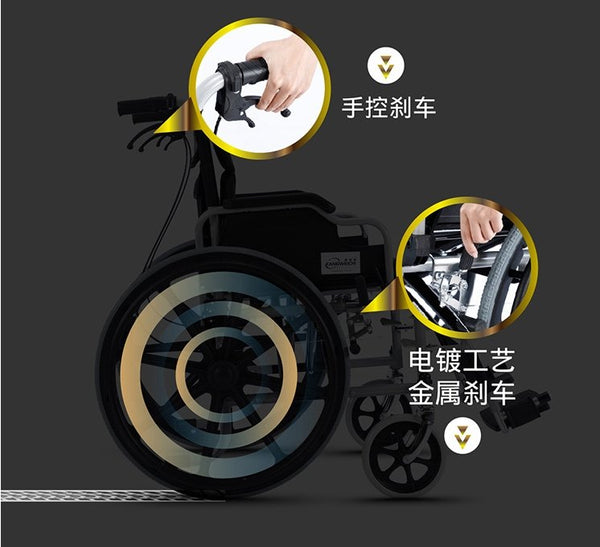

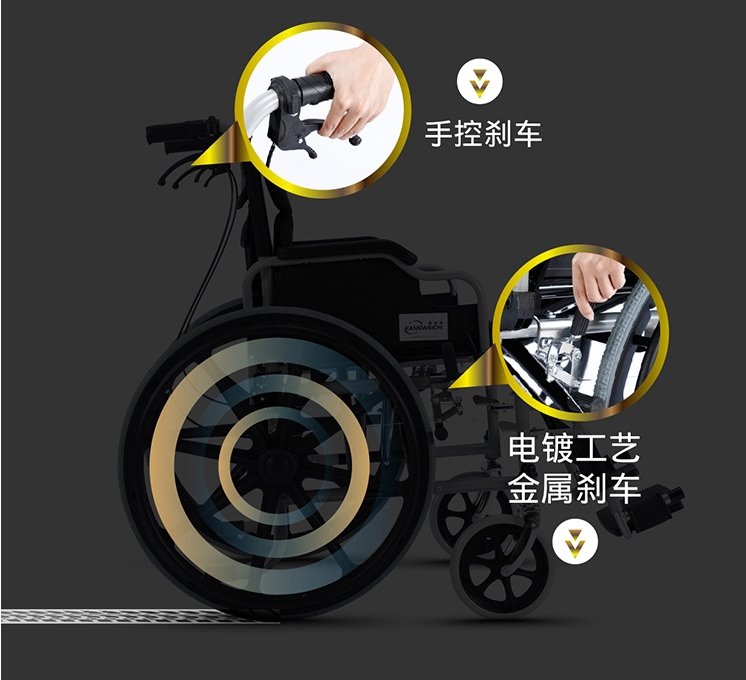

Brake structure: Adopt special luxury adjustable knuckle type aluminum alloy brake, beautiful, high-grade, suitable, braking effect is good, easy to replace and debug, cycle service life ≥ 160,000 times.
Back cushion Assembly: The black Oxford back cushion is equipped with 600D reinforced canvas, waterproof, flame retardant and environmental protection;
Wear seat belts and leg warmers.
Handle cover: made of black high-grade PP material, comfortable, beautiful and strong.
Total length: 107cm
The total width: Sitting width 46cm: 62cm; Sitting width 36cm: 56cm Sitting width 51cm: 68cm Sitting width 56cm: 73cm
Width of 46cm: 62cm; Width 36cm: 56cm width 51cm: 68cm Width 56cm: 73cm
Minimum width after folding: 30.5cm
Large wheel size: 24"
The front wheel size: 200*32mm
Seat height: 47.5cm
Total height: 96cm
depth of the seat: 40cm
Backrest height: 45cm
Safe bearing: 150kg
net weight: 11.2KG
Packing size: 80*26*92
