| Item |
Product Characteristic |
Product parameters |
|
| OPTICS |
Display Type |
America DLP technology |
| Display Chip |
TI 0.3 inch WVGA DMD*RGB LED （With Off-axis Ray Machine）>100% |
| Projector Feature |
Interactive |
| Brightness |
150 ANSI Lumens |
| Lamp |
OSRAM LED Lamps |
| Uniformity |
>90% |
| FOFO Contrast Ratio |
1000:1 |
| Standard Resolution |
WVGA 854*480 |
| PROJECTION |
Throw Ratio |
1.4 :1 |

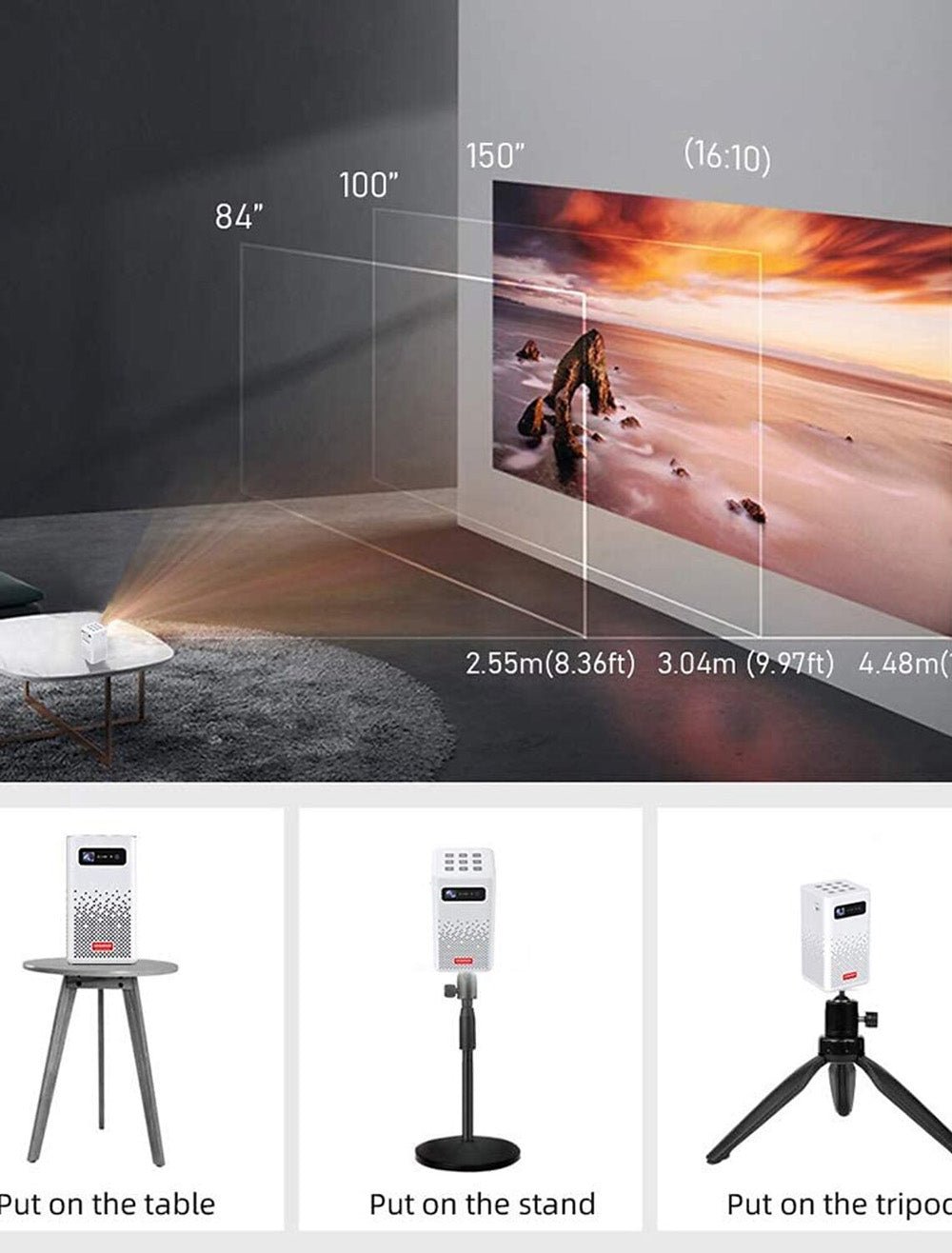

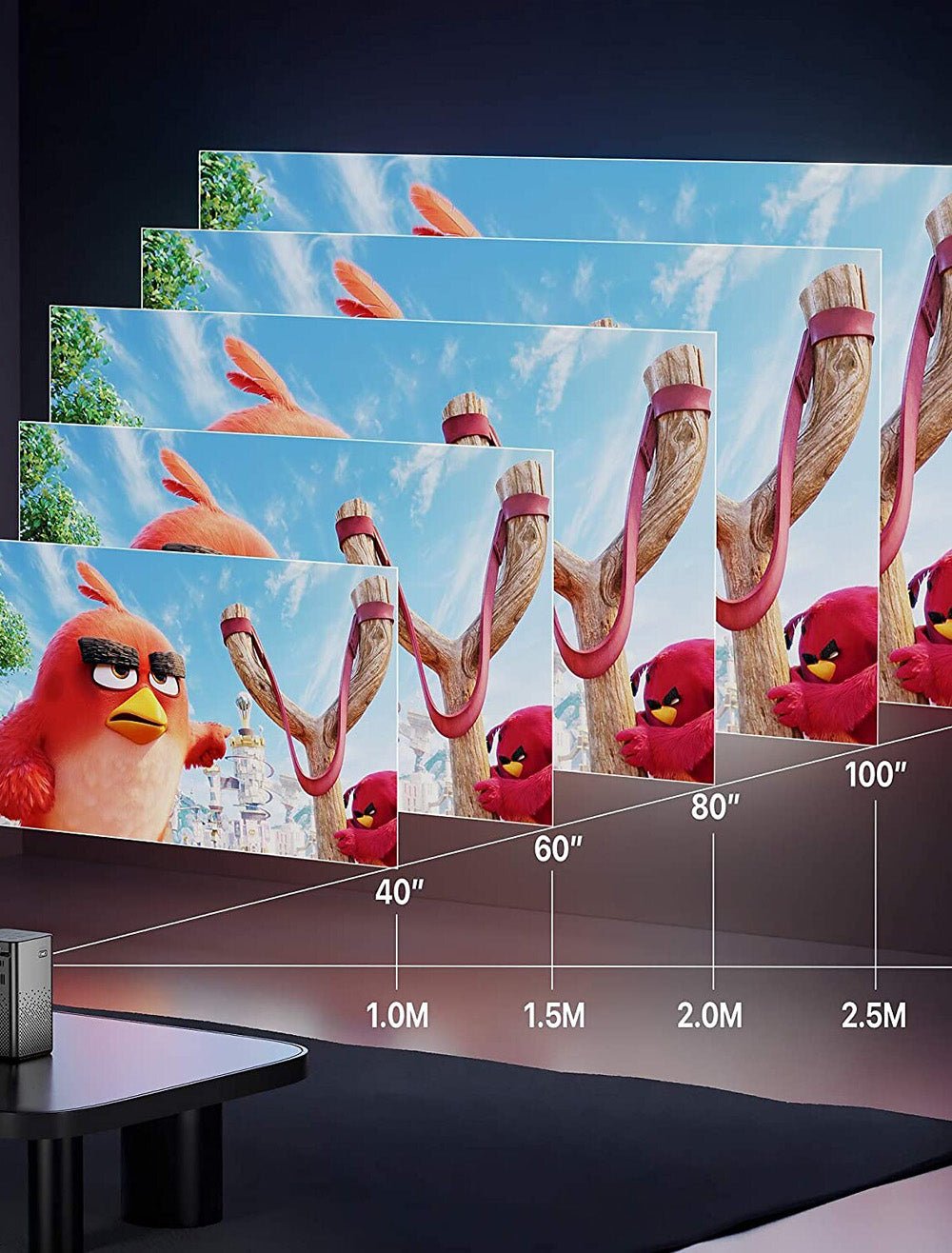

| Throw Range |
30-120 inches |
| Throw Distance |
0.2-3 Meter(s) |
| Keystone Correction |
Supports automatic and manual |
| Projection Methods |
Front Projection back-projection hang projection |
| Texture of material |
plastic ABS +electroplating |

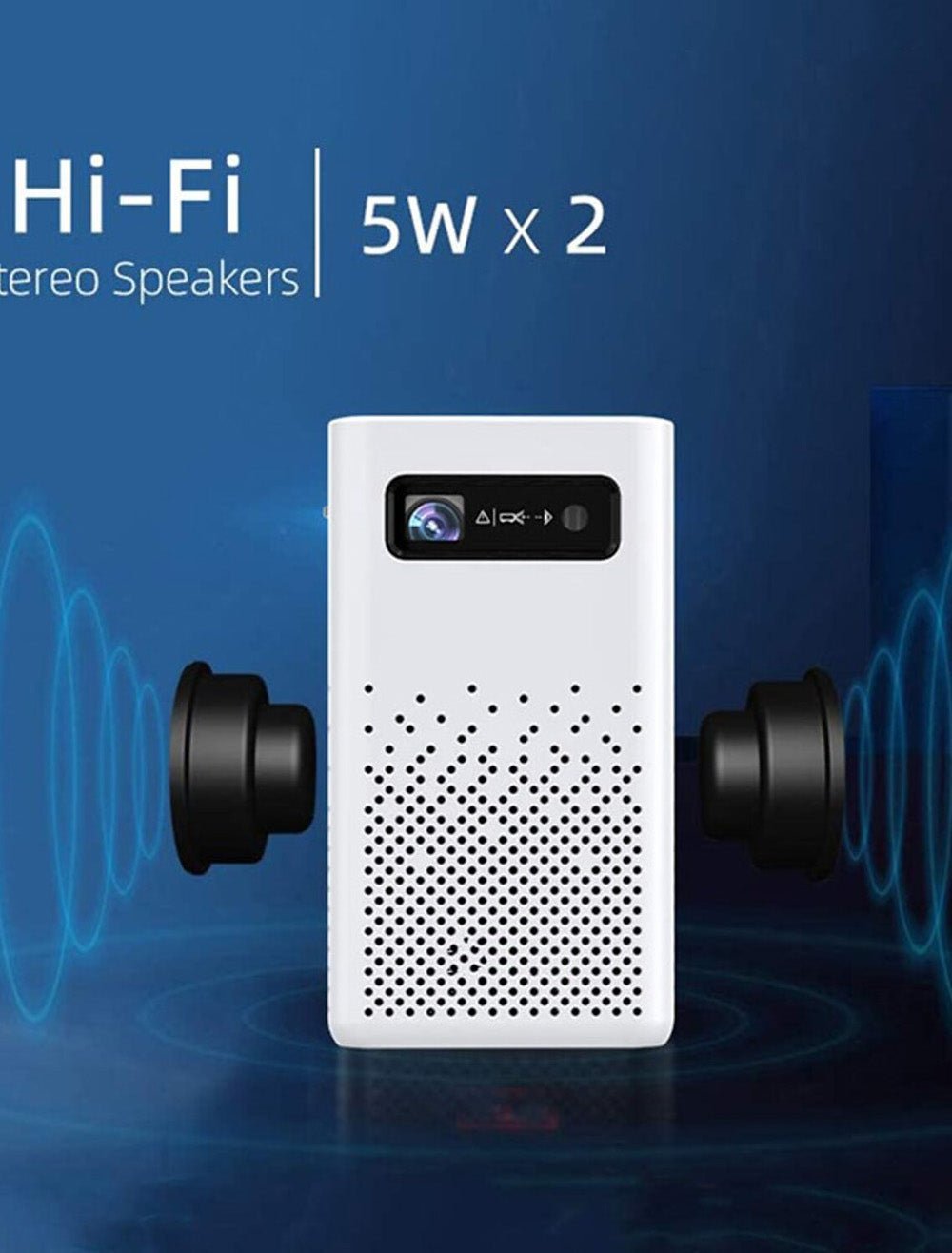

| built-in speaker |
5W*2 |
| SYSTEM PARAMETERS |
CPU |
MTK9632 Decode 4K H.265/AVS2 4K*2K/60HZ |
| Clock Speed |
64 bits CPU: Cortex A53 Two nuclei GPU: Mali-450mp4 |
| RAM |
2G DDR3 |
| ROM |
32GB Emmc |
| Operating System |
Android 9.0 |
| Video Support |
Real-Time Video Decoder for MPEG-1 MPEG-2 MPEG-4, H263,H264,H265,VC-1,RV
1080P VP8, Sorenson SparkWAV |
| Audio Support |
MP3,WMA,MP2,0GG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
| Photo Support |
Supports a variety of image formats browsing jpg png BMP etc |
| FLASH Support |
Supports flash 11.1 |
| Extended Memory |
TF card and SSD Hard Dish |
| USB |
USB HOST 2.0*1 ，Able to read data from USB hard drive support mouse and keyboard access |
| Extended Memory |
TF card and SSD Hard Dish |
| HDMI |
Supports HDMI 2.0input |
| Bluetooth |
Bluetooth 5.0 |
| WIFI |
2.4G/5G Dual-band WIFI |
| Remote Control |
Infrared remote control and support connect the 2.4g wireless remote control and the mouse |
| Power Input Parameters |
12V-2A DC |
| Input Support |
USB, IR |
| Miracast |
Eshare |
| INTERFACE |
HDMI |
Support input |
| USB |
Able to read data from USB hard drive and support mouse access |
| Headphone Output |
Audio output, 3.5mm connectors (can connect headphones or speakers) |
| DC Input |
Power adapter: DC 12V 2A-3A |
| ELECTRICAL SPECIFICATIONS |
Total Power Consumption |
10W |
| Power Performance |
AC110-240V,50/60Hz built-in battery |
| Battery Inside |
3.7V 5200mAH |
| OTHER PARAMETERS |
Product Size |
78*78*140mm |
| Package Size |
245*190*100mm |
| Net Weight |
550g |
| Package Weight(1set) |
1.2kg
|
|
Package Weight(24set/box)
|
12.5Kg |
| Carton Size(24set/box) |
525*265*420mm |
