Description
Warranty: One Year

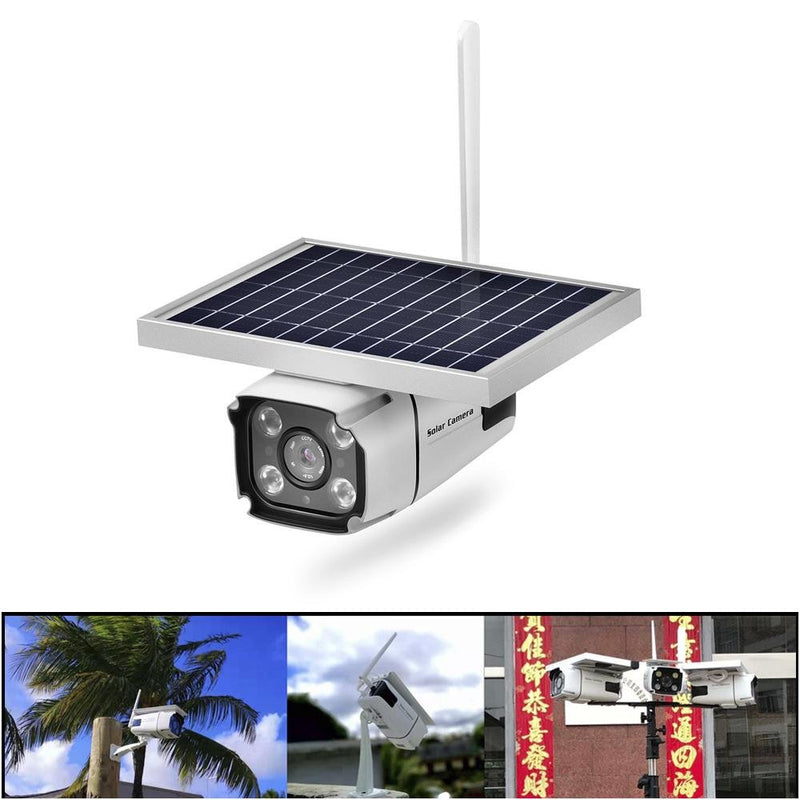

Ⅰ、This product is an outdoor surveillance camera without power connection,no wiring, simple installation and ready-to-use installation.

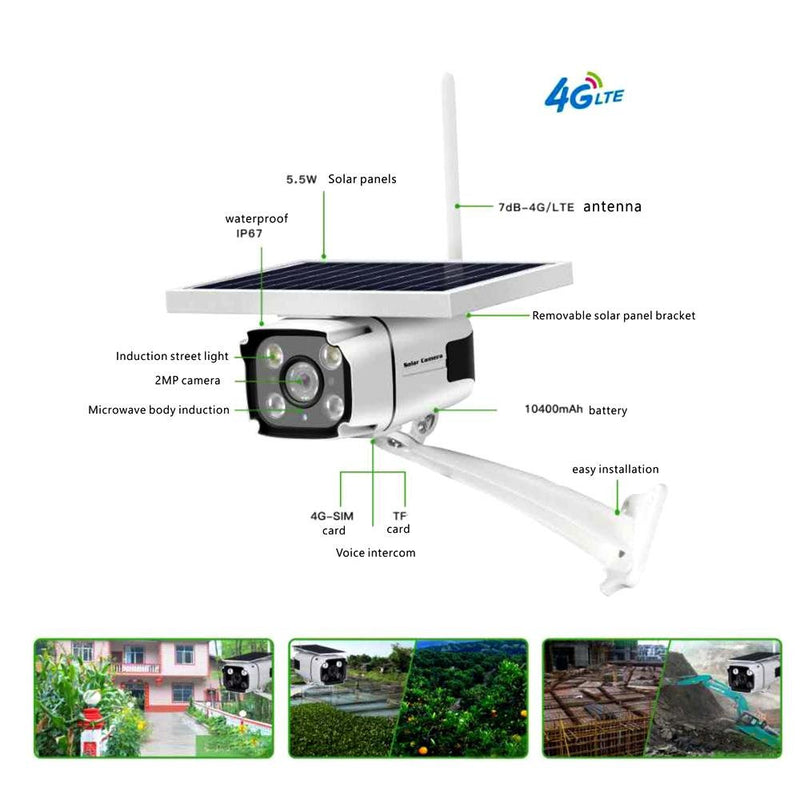

Ⅱ、Core selling point：
1、no electricty connection：powered by solar & builtin battery；
2、no wiring：no drilling，no decoration damage；
3、Support full band 4G, needs to choose the version； 4、remote control：anywhere,anytime；
5、hmd：motition detected，filming actived；
6、privacy protection：local storage，no leakage；
7、induction lamp：human detected，lamps auto activation；
8、simple installnation：DIY installnation；

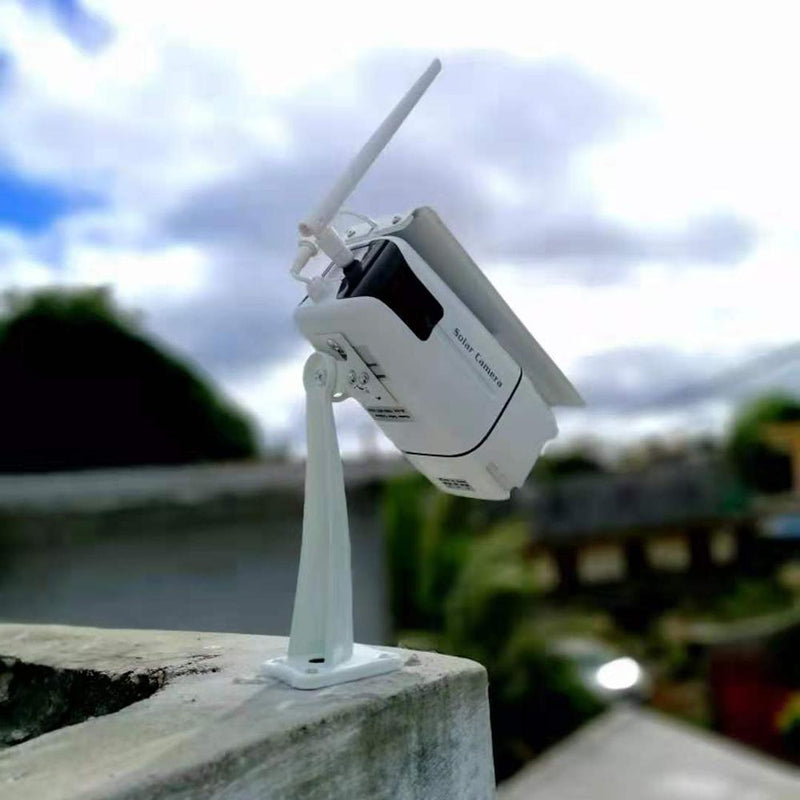

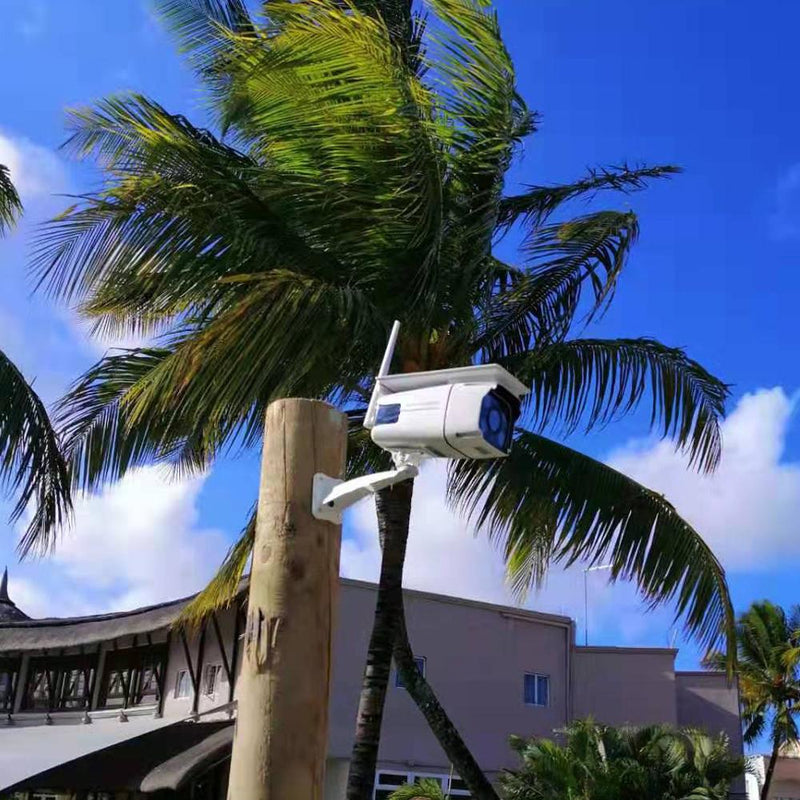

Ⅲ、applicate senerians ：gate、house、fish pond、orchard、farm、mines、construction site,etc。

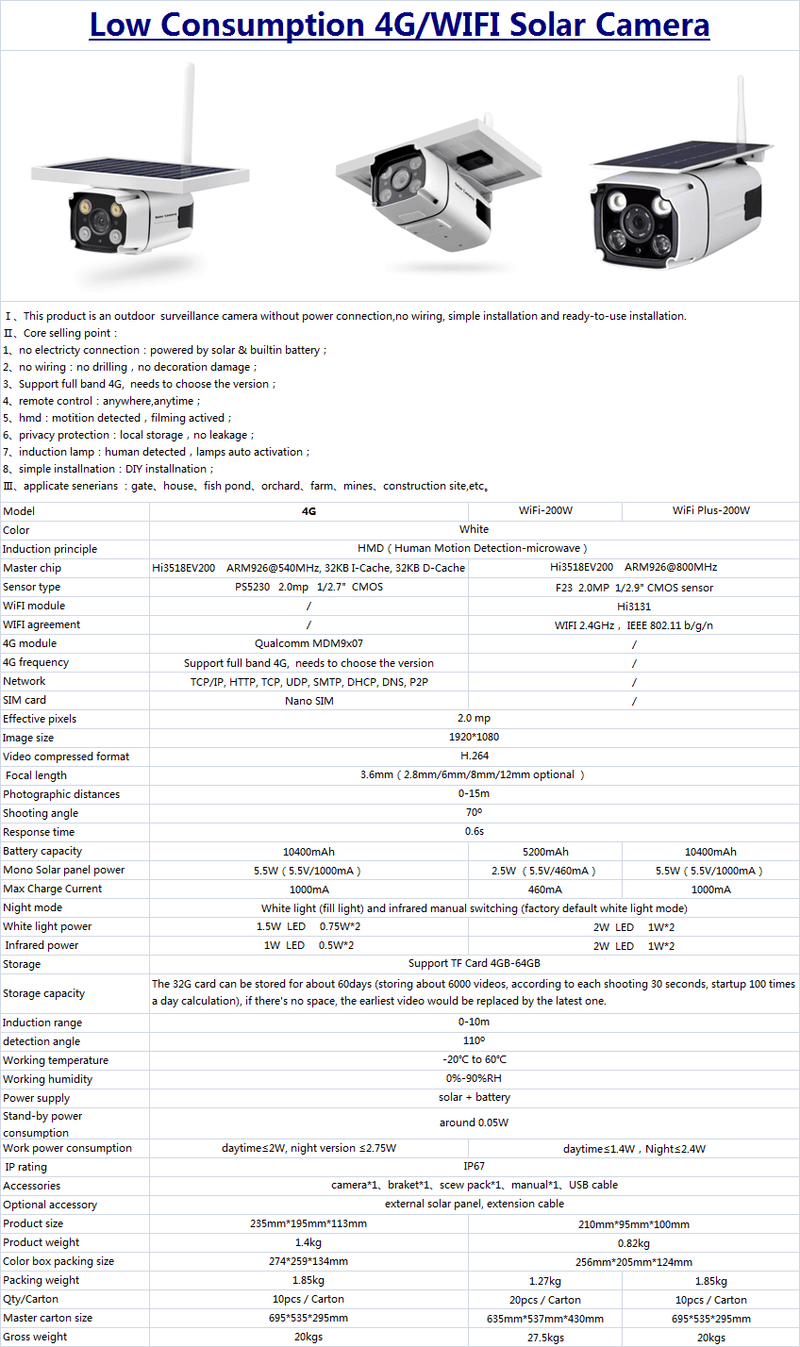

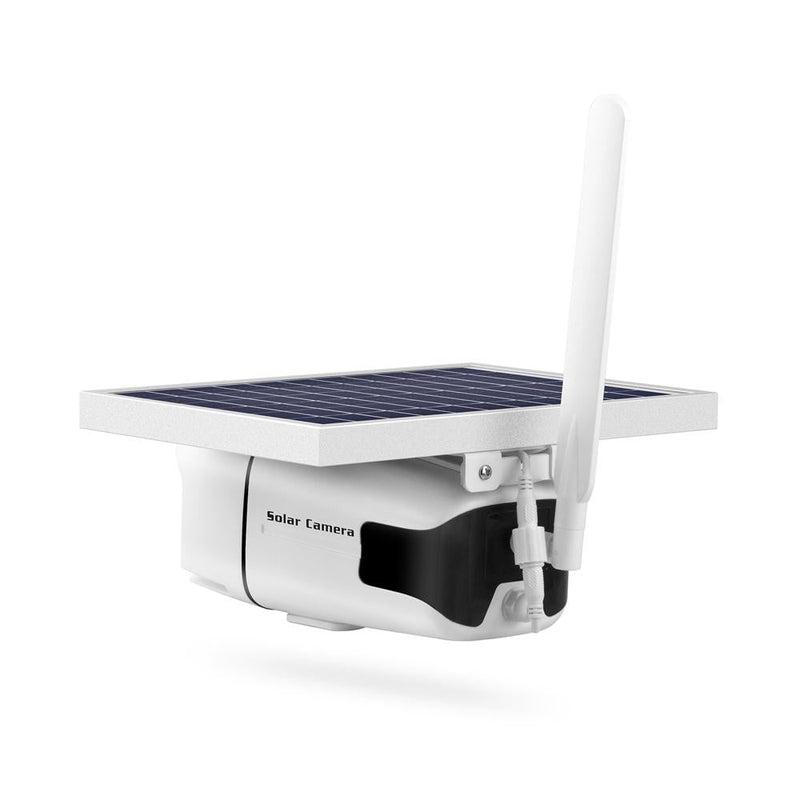

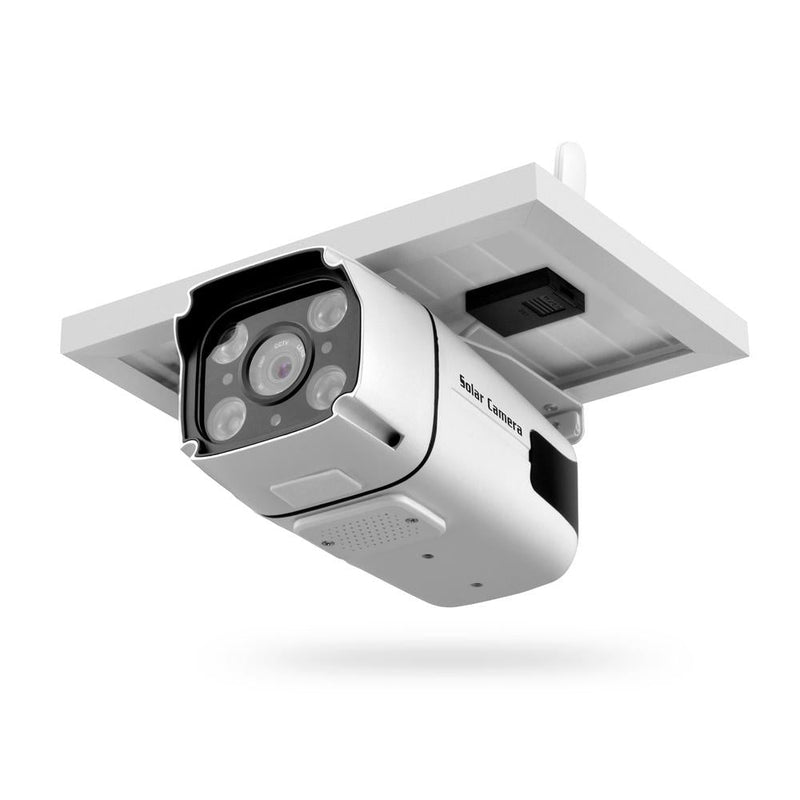

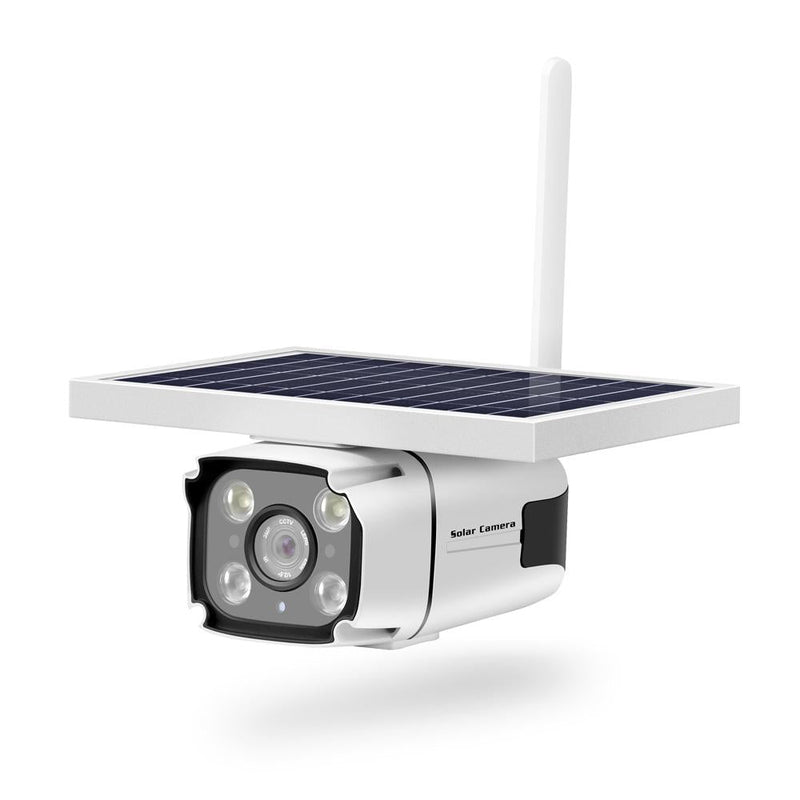

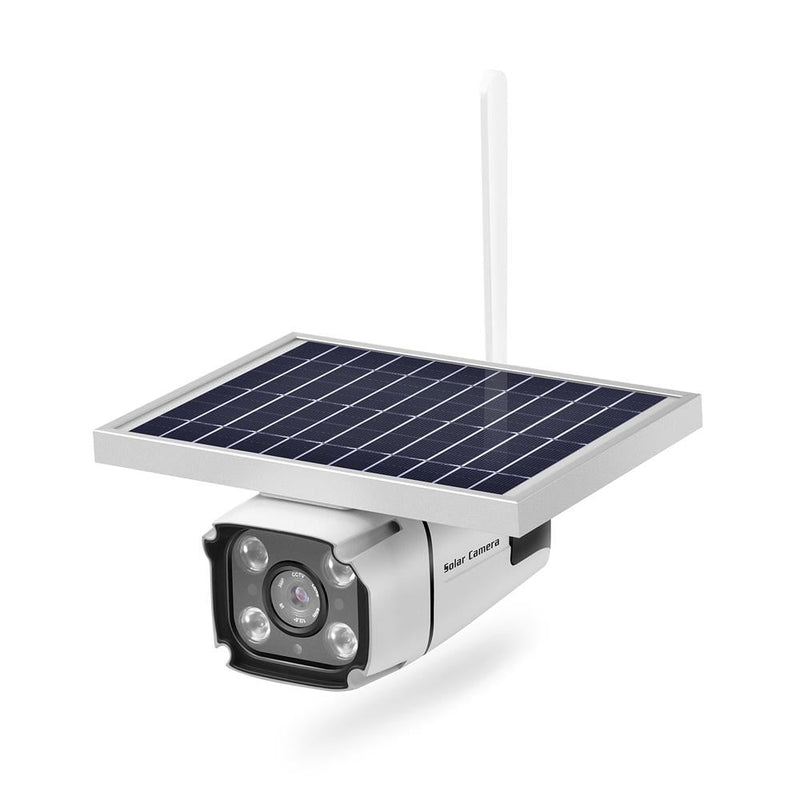

product: Low Powwer Solar 4G Camera
model: YN88-4G
color: white
Induction principle: HMD（Human Motion Detection-microwave）
CPU: T21Z
Sensor: SC2235H 200万 1/2.7" CMOS
4G module: Qualcomm SIM7600 Series/L718-CN-00
4G frequency: Support full band 4G, needs to choose the version
Network: TCP/IP，HTTP，TCP，UDP，SMTP，DHCP，DNS，P2P
SIM card: Nano SIM
Effective pixels: 2.0MP
Image size : 1920*1080
Video compressed format: H.264
Focal length: 6mm（2.8mm/4mm/8mm/12mm optional ）
Photographic distances: 0-15m
Shooting angle: 70º
Response time: 0.6s
Battery capacity: 10400mAh
Solar panel power: 5.5W（5.5V/1000mA）
Max Charge Current : 1000mA
Night mode: white lights +infraled
White light power: 1.5W LED 0.75W*2
Infrared power: 1W LED 0.5W*2
Storage: "Support TF Card 4GB-64GB and uploading to cloud
are available(Need to buy cloud space) "
Storage capacity: The 32G card can be stored for about 60days (storing about 180000videos, According to each shooting 20 seconds, startup 300 times a day calculation), if there's no space,the earliest video would be replaced by the latest one.
Induction range: 0-12m
detection angle: 120º
Working temperature: -10℃ to 65℃
Working humidity: 0%-90%RH
Power supply: solar + battery
Stand-by power consumption: around 0.05W
Work power consumption: daytime≤2W, night version ≤2.75W
IP rating: IP66
Accessories: camera*1、braket*1、scew pack*1、manual*1、USB cable、Tweezers
optional accessory: external solar panel, extension cable
Product size: 235mm*240mm*115mm
Product weight: 1.4kg
Packing size: 274*259*134mm
Packing weight: 1.9kg
