Description

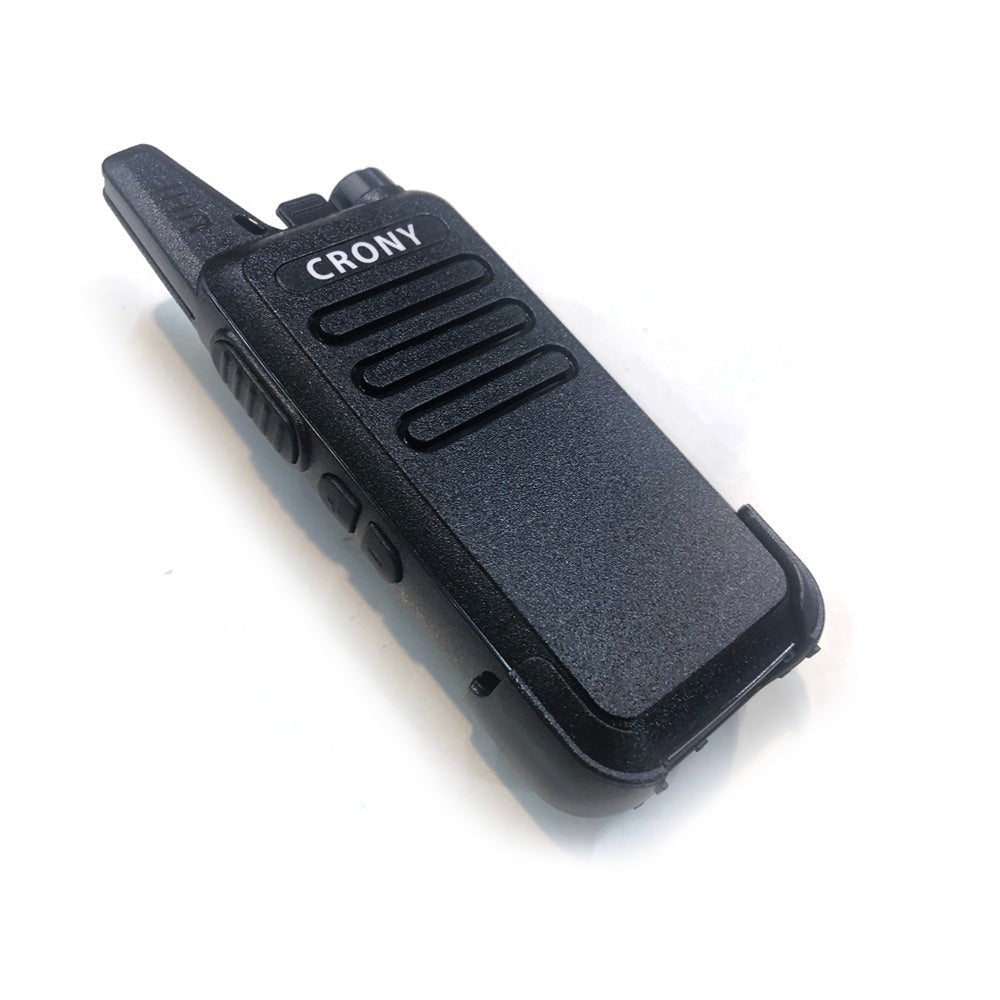

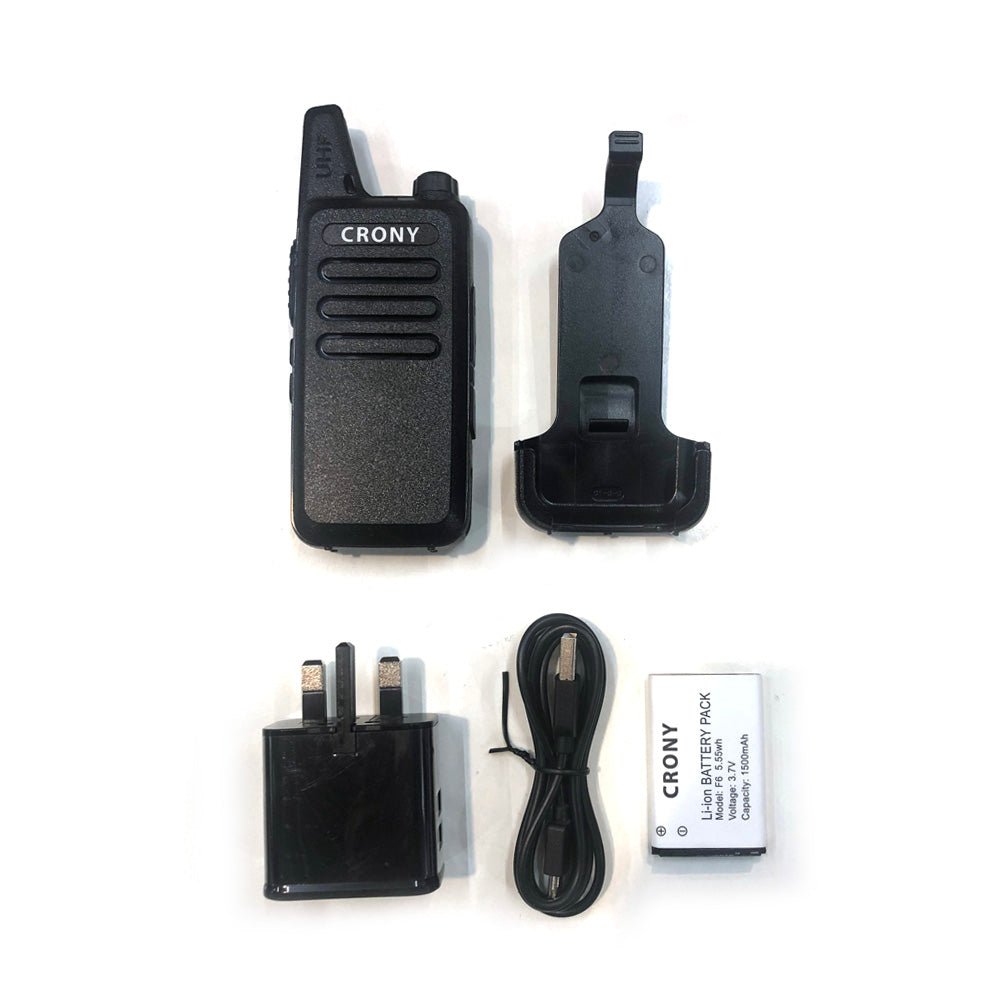

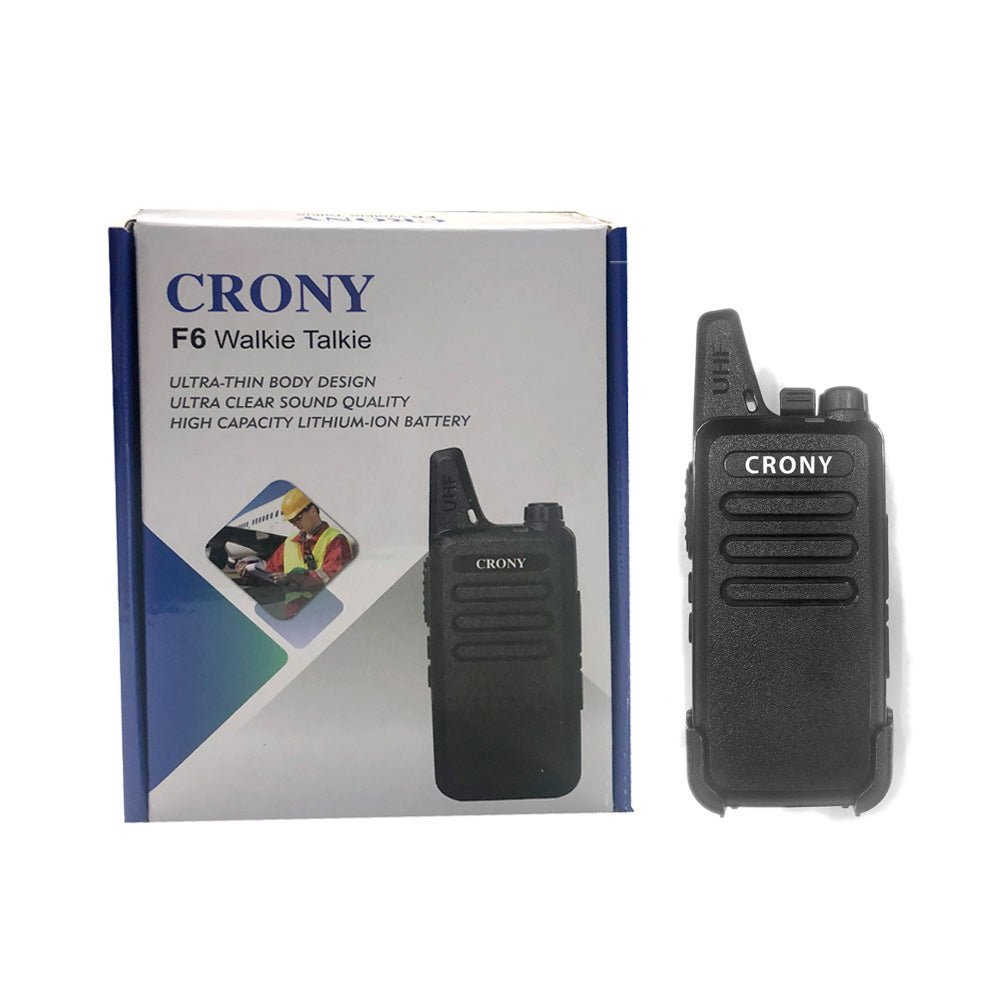

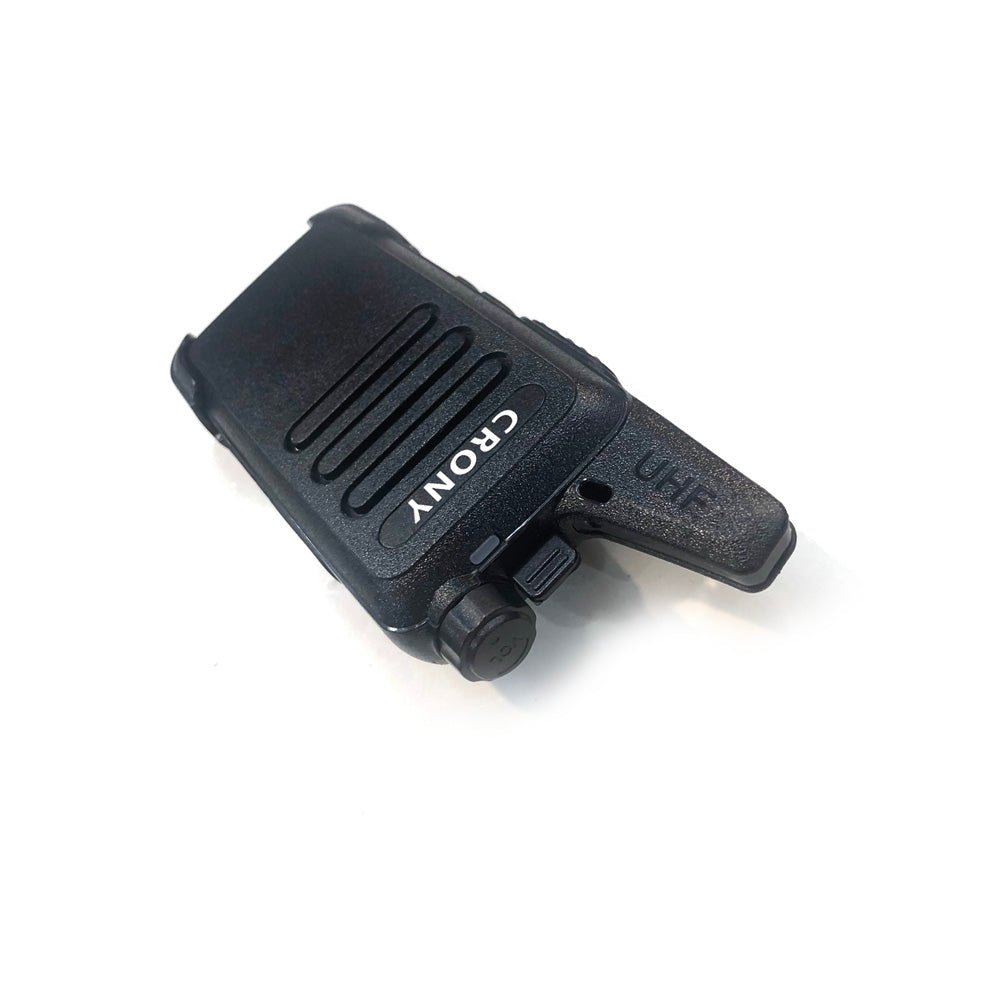

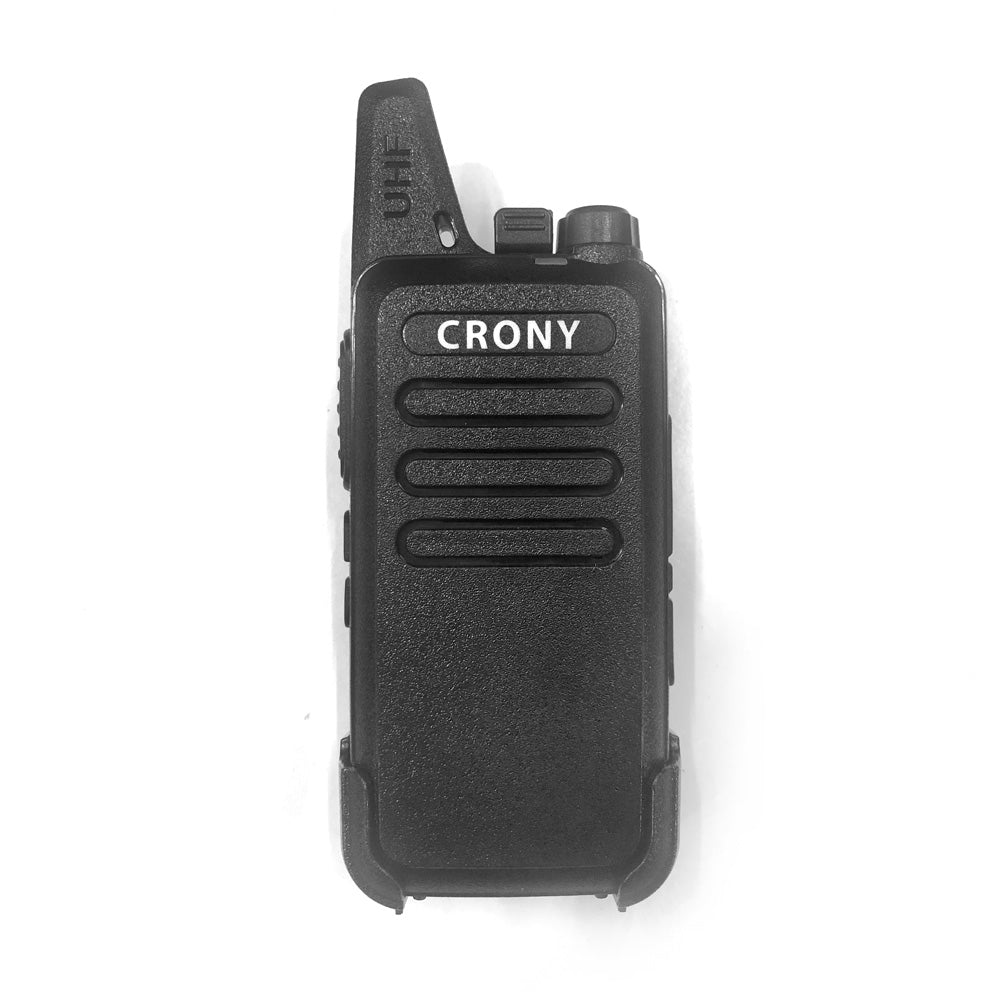

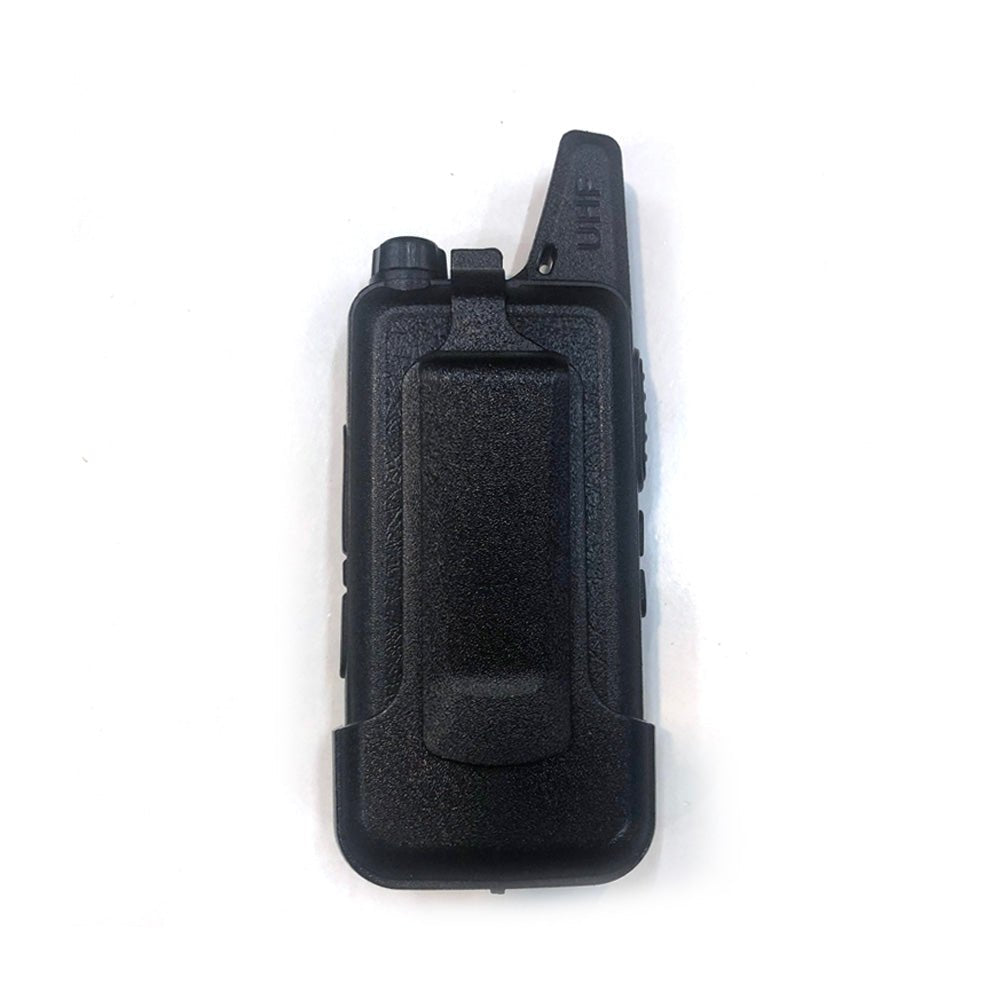

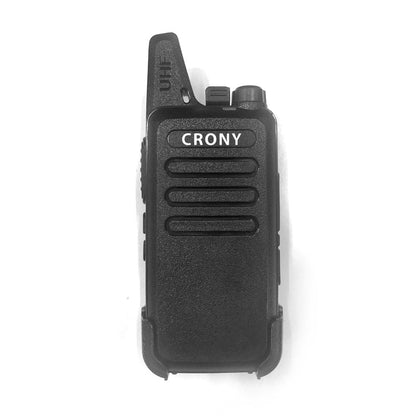

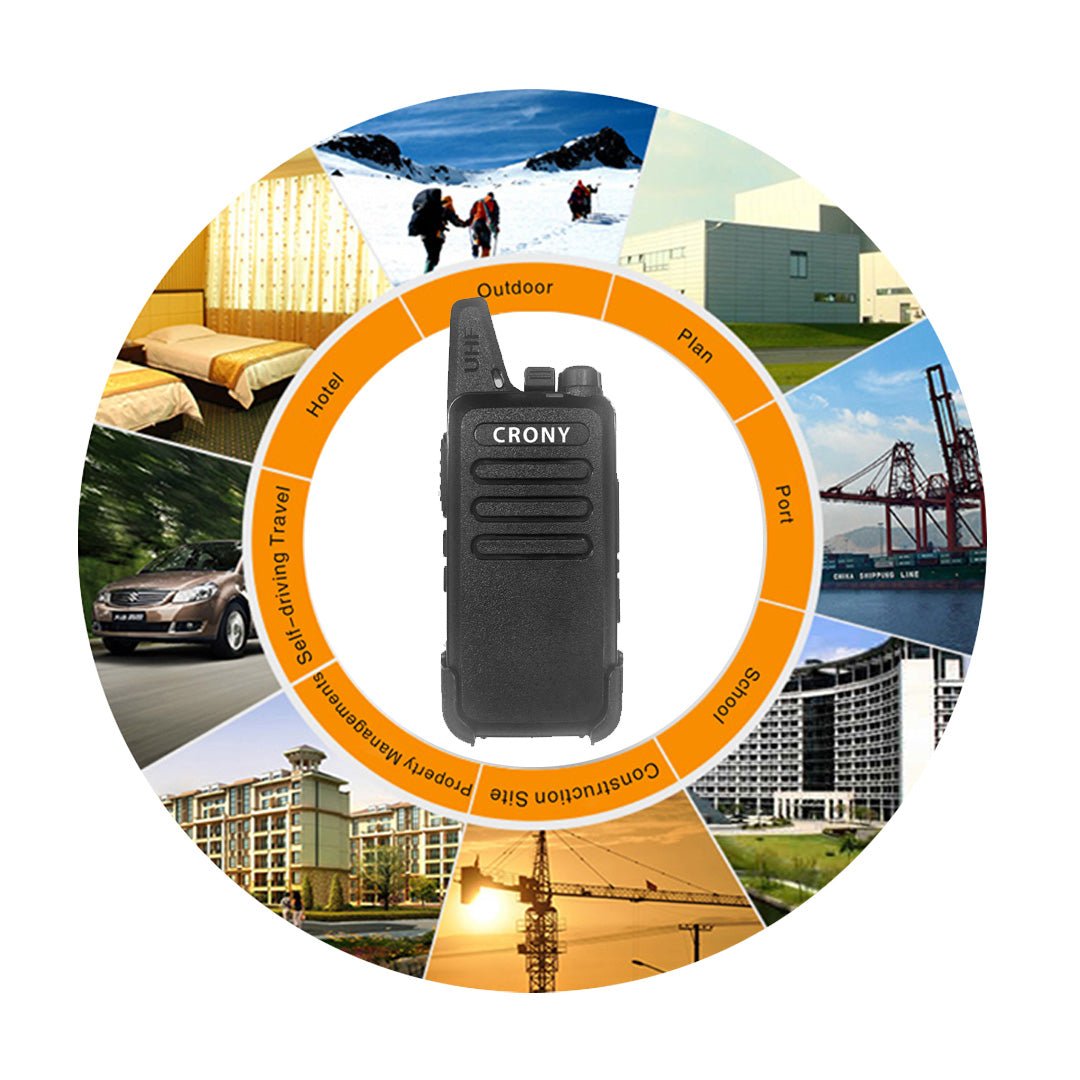

CRONY F6 Walkie Talkie Professional FM Transceiver
Warranty: 3 months for device only not included the battery

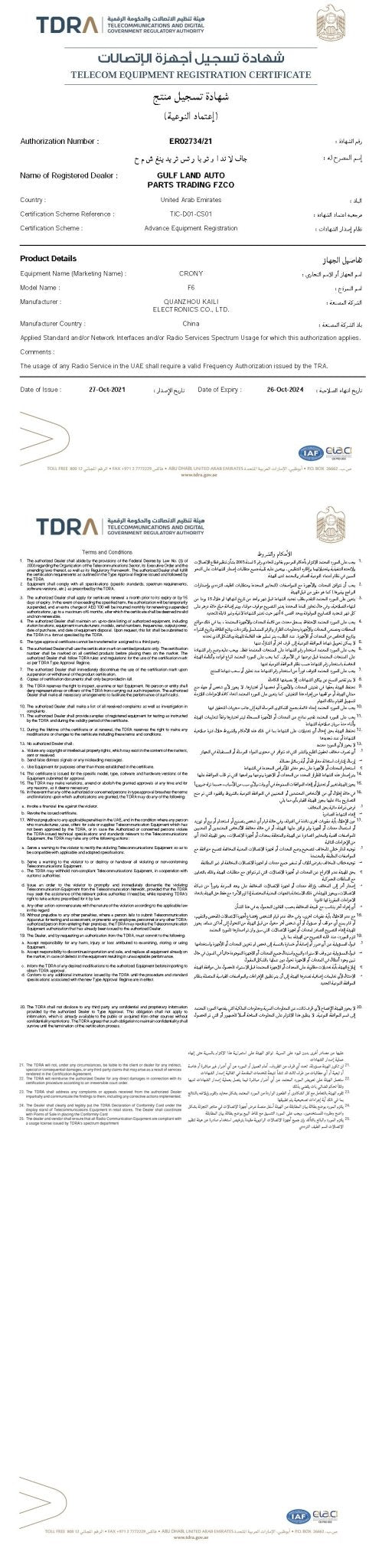

F6 Walkie Talkie license
Write frequency software
Walkie-talkie writing steps:
Step 1: Install the frequency writing software and USB driver on the computer, and install according to the software prompts;
Step 2: Insert the USB end of the writing frequency cable into the USB interface of the computer, and connect the other end to the accessory interface of the walkie-talkie;
Step 3: Turn on the power switch of the walkie-talkie;
Step 4: Click the desktop shortcut on the computer to open the writing software
Step 5: Click "Read Frequency", select the communication port, click "Confirm" to read the default configuration of the walkie-talkie;
Step 6: After the frequency reading is successful, modify the parameters that need to be configured on the frequency writing template, such as: sending and receiving frequency, contacts, etc.;
Step 7: After the modification is completed, click Write frequency and wait for the walkie-talkie to restart and write frequency to complete;
Step 8: Remove the radio frequency writing cable, and perform a functional test on the radio to confirm that the frequency writing is successful.
Features:
16 channel
Torch Light
Battery Save
VOX Function (Handsfree)
Voice Prompt
Time-out Timer
PC Programming
Emergency Alarm
Intelligent Charging
FRS, GMRS and UHF
50 CTCSS/105 CDCSS
Li-ion battery long life
Specifications:
Frequency Range: UHF 400-470MHz
Channel Capacity: 16
Channel Spacing: 25KHz
Operated Voltage: 3.7 V
Battery:1500MAh Li-ion
Battery Life: Stand by 24 Hours (Voice 8 Hours)
Frequency Stability: ±2.5ppm
Operated Temperature: -30°c-+60°c
Antenna Impedance: 50Ω
Communication Range: 1~10 Km (Depend on the area condition)
Transmitter
RF Power Output
Modulation 5W
Spurious Emission <=65dB
FM Noise <=-45dB(W) <=-40dB (N)
Audio Distortion <=5%
Transmitting Current <=1.3A
