Description

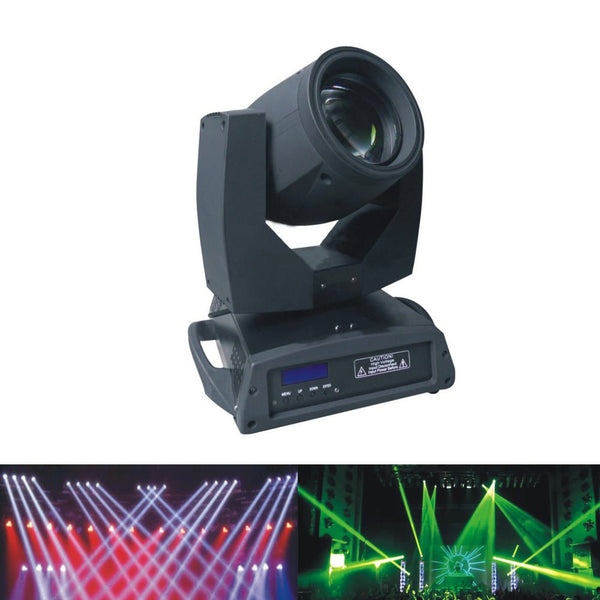

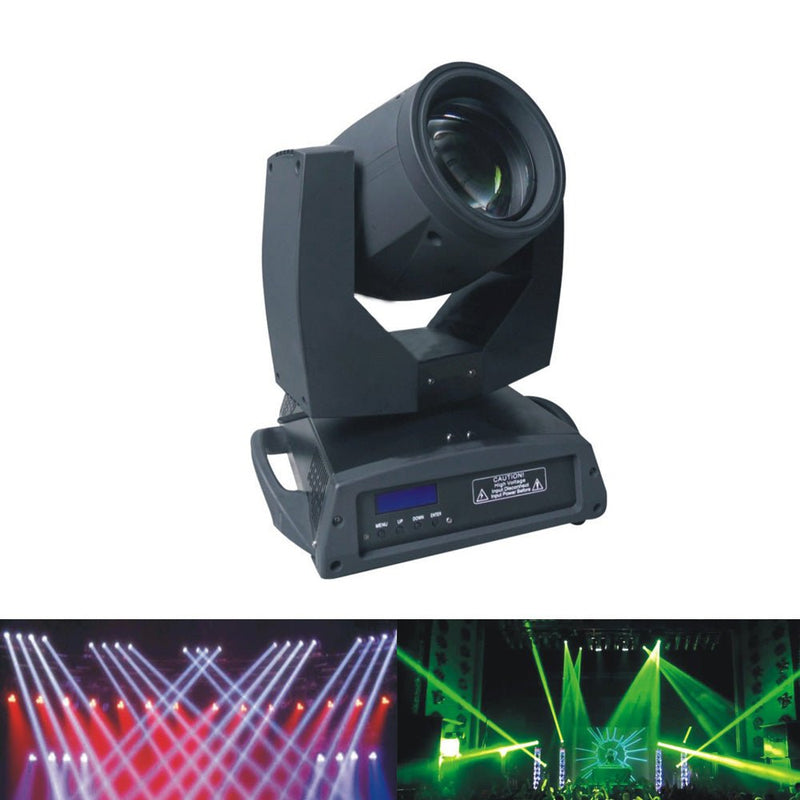

SL-820 200W Moving Head Beam Light
Voltage : AC110-240V/50-60Hz
Lamp: 189W Philips MSD Platinum 5R or YODN 5R
Power: 350W
Control Signal: DMX512
Control Channel: 16CH
Size: 440×410×540mm
N.W : 17KG
G.W: 22KG
Luminous flux of 7950lm, color temperature can reach 8000K.
Inductance ballast and AC / DC switching power supply
Beautiful dot matrix display, a four switch, reverse 180 degrees.
The color wheel: a color wheel, each color plate consists of 14 color
temperature film and white.
Gobo wheel: 17 gobo and white.
Effect wheel: a rotatable eight prism, effect moving and frost.
0 - 100% mechanical dimming, support mechanical
strobe and adjustable speed stroboscopic effect stroboscopic
macro function,Lens optical system, electric focus, beam angle of
0 to 4 degrees.Using photoelectric reset system. automatically
reset when accidental mis-operation.
Channel :16CH
Horizontal 540 degree, resolution of 8 bit / 16 bit
The vertical resolution of 270 degree, 8 bit / 16 bit.
Overheat protection
Protection grade: IP20
