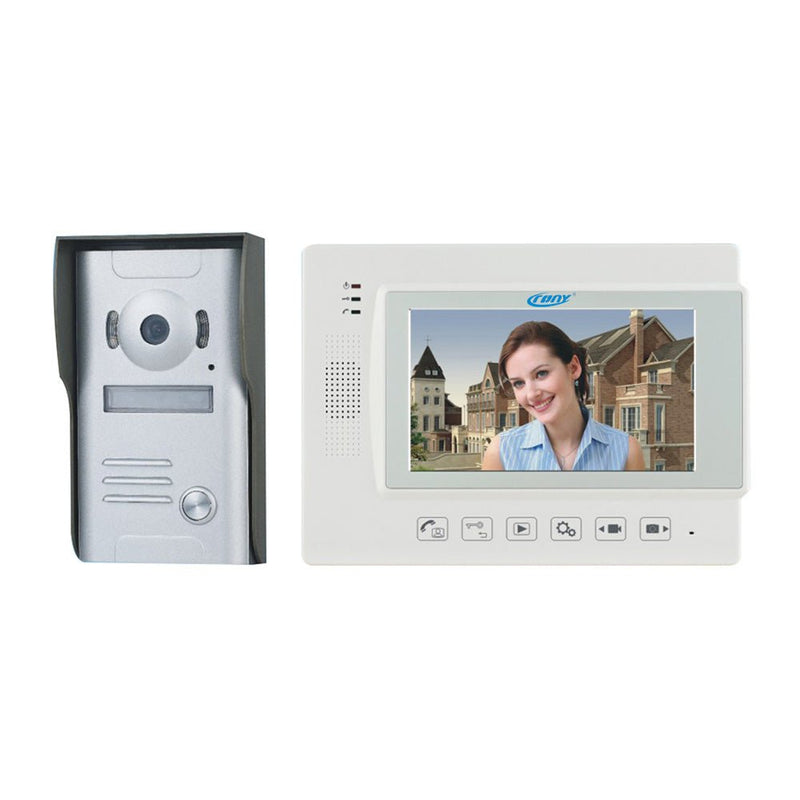

CRONY ZDL-97M 4GB Doorphone Video doorphone
Product Features:
* IP56 waterproof outdoor unit.
* Outdoor camera with rain shade can avoid direct sunshine.
* Intercommunication is available between indoor unit and outdoor unit.
* Damage-proof outdoor unit.
* High definition camera, Night vision.
* Hands-free intercommunication.
* Monitoring the outdoor.
* Brightness, chroma and ring adjustable.
* 8-chord melody rings for option.
* DIY installation.
Tchnique Parameter
Adapter input Voltage:AC100-240V 50Hz-60Hz Dual-Voltage.
Adapter output Voltage、Current:DC15V 1500mA
Talk time delay:120S ±10%
Monitor time delay:40S ±10%
Dissipation: stand by<0.5W, Working <10W
Working Temperature :-35℃~55℃
Relative humidity:10%-90%(RH)
Main setting
1 Pressing calling button from the outdoor unit, indoor monitor display image.
2 Pressing monitoring button, indoor monitor display image.
3 Taking a picture automatic or automatic a 10 S video are optional
[take photos or videos triangular icon flashes when prompted]
Button operation on monitor:
Monitoring interface, button operation
Playback button: View photo or video
Video button: Video 10S
Image button: Take one picture
Monitoring button: Standby
Back button: Returns to the calendar interface
Enter the menu interface, button operation
Video button: right
Image button: left
Monitoring button: to confirm entry
Back button: Returns to the previous menu
Playback button: View photo or video
Parameter Description
LCD driver 800 X 480
Photo format JPEG standard
Video encode MJPEG standard, AVI file
The video input CVBS analog video input
FLASH memory 2MB Flash, store 50 pictures.
TF / SD card storage Default TF / SD card 4GB (maximum support 32GB)
Length of a single video file 10 seconds
Working voltage DC15V ± 1V
Operating Current 330mA
Start-up time 1 second
Working Temperature -35 ℃ ~ +55 ℃
